MSM-159C-051-S3 - Datasheet
MBA
Category Information

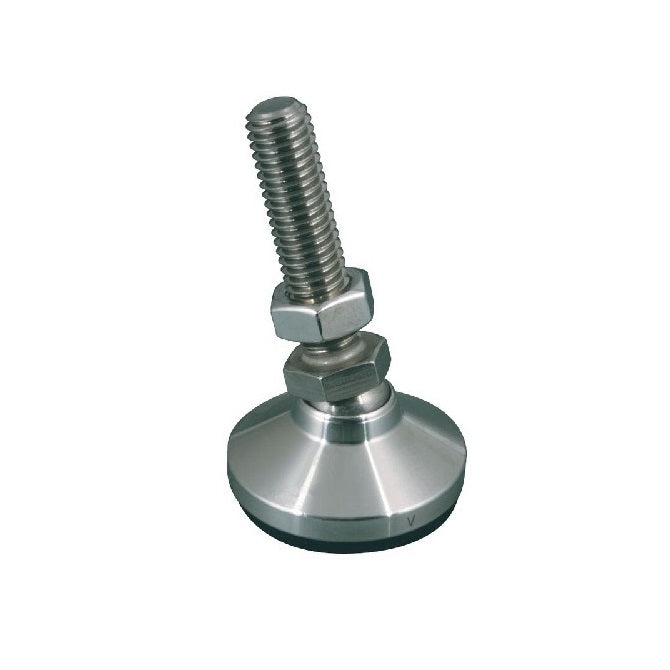

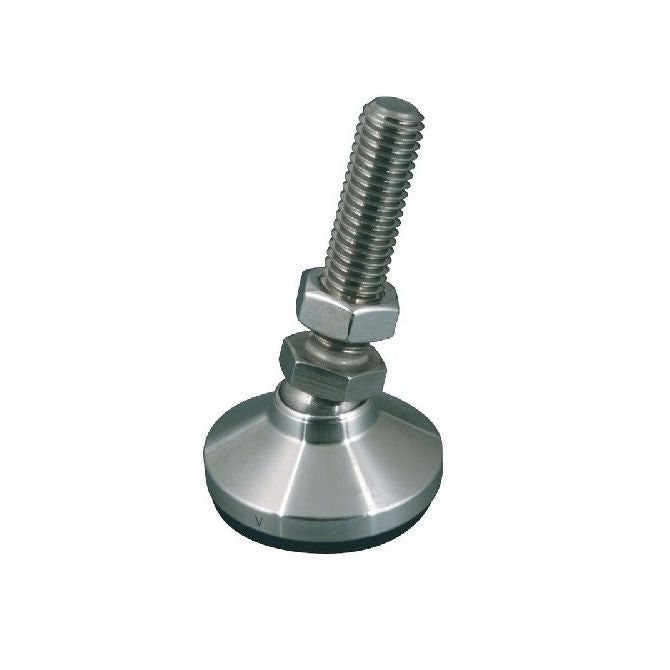

Mounts - Levelling Studded - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

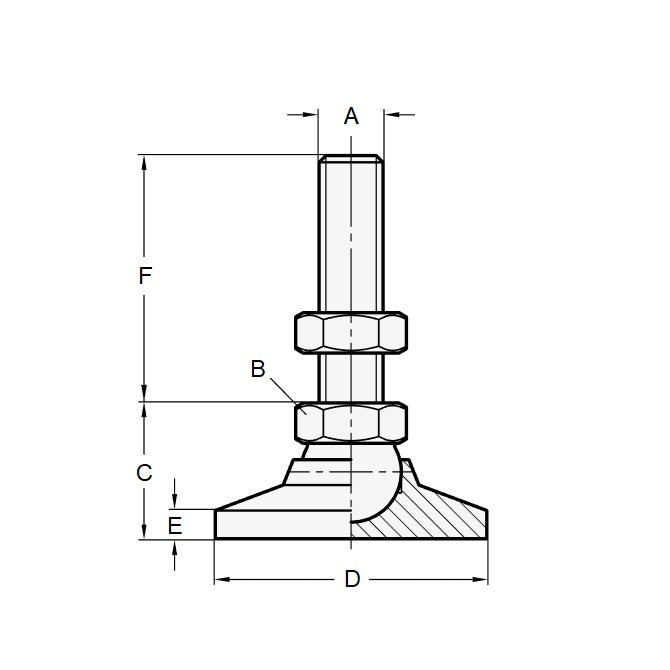

- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
63.5
mm
(Equiv. 2.5 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 7.94 mm
- Overall Height 82.6 mm
- Load Rating 2720 Kg
- Hex Flats (B) 22.225 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6111K53
- MSM2720159CS3
- TL3SS
- TL-3SS
