MSF-048F-CBC - Datasheet
MBA
Category Information

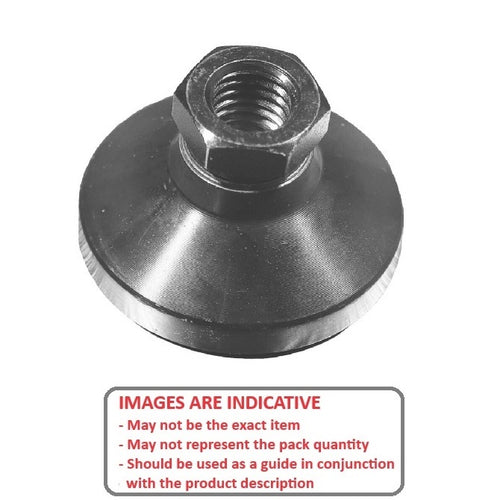

Mounts - Levelling Socket - Swivel - Black Chromate - StandardStandard Black Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Min. Thread Depth 4.3 mm
- Base Height (E) 2.79 mm
- Load Rating 270 Kg
- Finish Black Chromate
- Hex Flats (B) 9.53 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6103K124
- MSF0270048FB
- LBK-5
- LBK5
