MSF-160M-S3 - Datasheet
MBA
Category Information

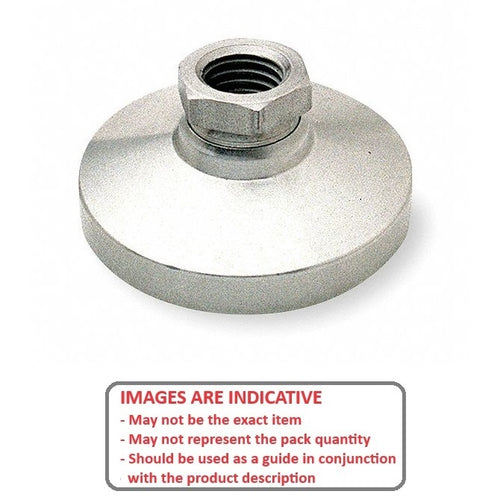

Mounts - Levelling Socket - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
32.0
mm
(Equiv. 1.26 in.) - Min. Thread Depth 11.0 mm
- Base Height (E) 8.00 mm
- Load Rating 2700 Kg
- Hex Flats (B) 22.00 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6120K51
- MSF2700M16S3
- MLPSS185
- MLPSS-185
