TMF-608RS - Datasheet
MBA
Category Information

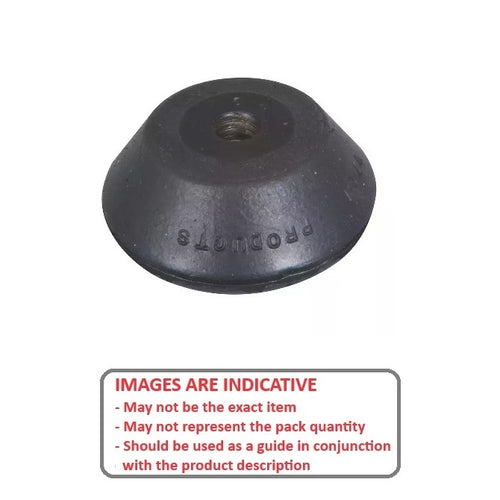

Mounts - Levelling Bonded Neoprene - No StudNo Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
- Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
Product Data
- Load Capacity : 27.0 to 136.0 Kg
- Min Load Deflection
1.270
mm
(Equiv. 0.05 in.) - Max Load Deflection
5.080
mm
(Equiv. 0.2 in.) - Thread 1/2-13

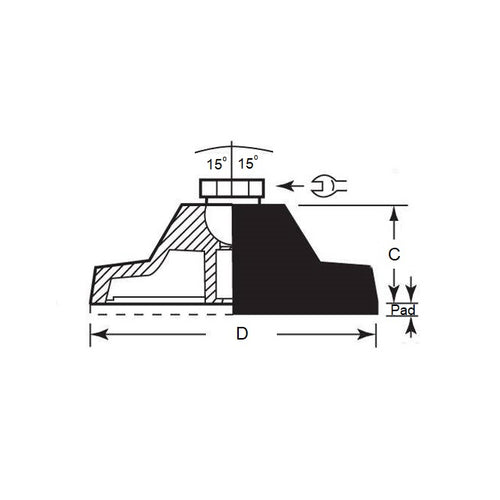

- Base Diameter 55.6 mm
- Foot Height 20.6 mm
- Top Diameter 34.9 mm
Product Compliance and Data
Additional Resources
Cross References
- 60855K34
