Miniature Bearings Australia
W0270-LK-042-066-LR-CZ - Datasheet
LockRite
Category Information

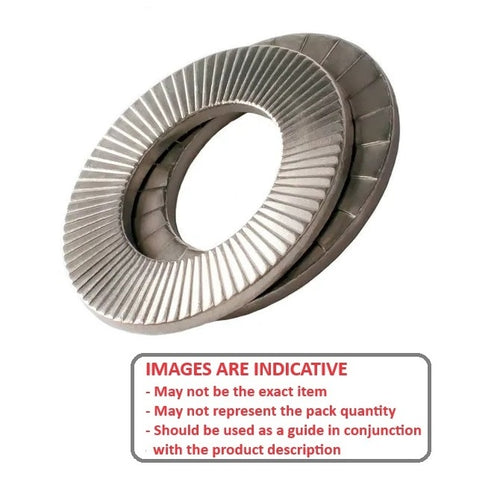

Washers - LockRite - Corrosion ResistantCorrosion Resistant LockRite Washers. Carbon steel with Delta Protekt coating.
- LockRite© washers offer resistance to self loosening during vibration & fluctuating loads. An expanded range may be available on special order. Please enquire.
- They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
- Supplied in pairs. Assembled in pairs, cam face to cam face.
- Locking function not affected by lubrication. Eliminates the need for adhesives. Reusable.
- Can be used with fasteners up to grade 12.9.
Product Data

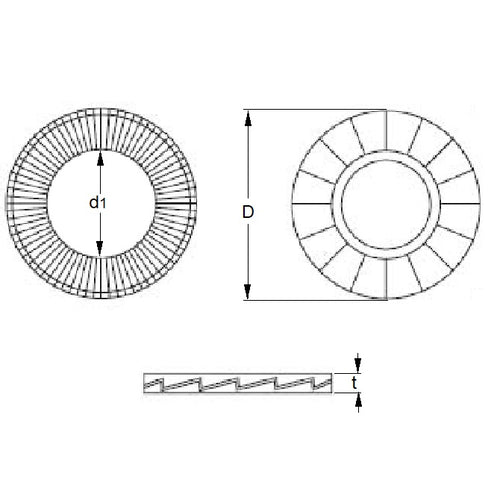

- Nominal Inside Diameter (d1)
:
27.0
mm
(Equiv. 1.063 in.) - Nominal Outside Diameter (D)
41.9
mm
(Equiv. 1.65 in.) - Thickness (t) Per Pair - 6.6 mm
- Info Sold per pair
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1060363
- LockRite LR412866
- WASCA LR412866
