P-030G-026-060FF-AL-G-064 - Datasheet
MBA
Category Information

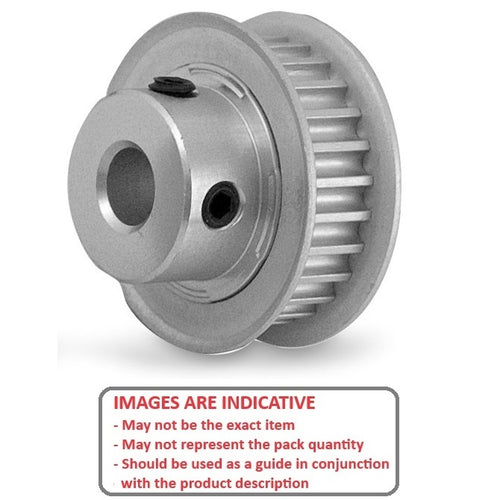

Pulleys - Metric Timing - 3.000mm Pitch - GT - 6mm Wide Metallic Through Bore6mm Wide Metallic Through Bore GT 3.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Finished through bore ready to assemble
Product Data
- Number of Teeth : 26
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Bore Type Finished
- Locking Type Set Screw

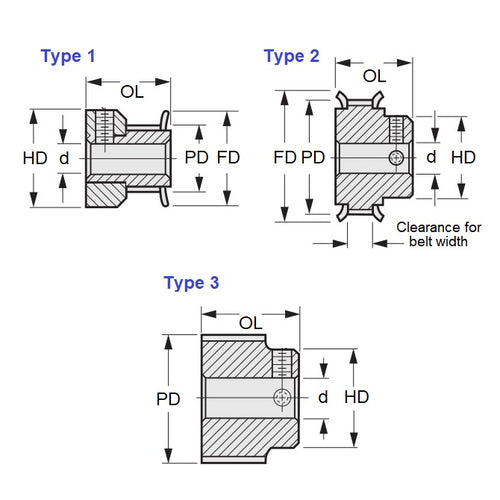

- Type 2
- Pitch Dia. (PD) 24.82 mm
- Flange Diameter (FD) 28.7 mm
- Overall Length 17.5 mm
- Hub Diameter (HD) 15.9
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 26-3P06-6FA3
- 263P066FA3
- A6A53-026DF0608
- A6A53026DF0608
