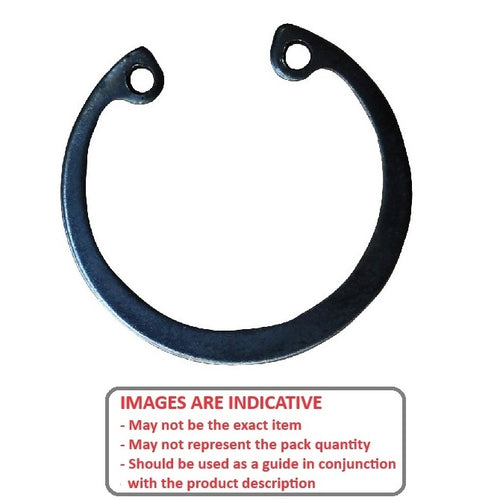

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
26.99
mm
(Equiv. 1.063 in.) - Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.) - Groove Dia. (Dg)
28.70
mm
+ 0.00 / - 0.06
(Equiv. 1.13 in.) - Approx. Loose Circlip OD (Dr) 29.97 mm + 0.64 / - 0.38
- Groove Width (W) 1.42 mm + 0.10 / - 0.00
- Clearance in Bore (C) 17.53 mm
- Clearance in Groove (C1) 19.05 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 2.59
- Standard MIL-16625
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 99142A470
- NoCor HO-106
- HO106
- N1300-0106APP
- N13000106APP
