PFL-020G-045-A - Datasheet
MBA
Category Information

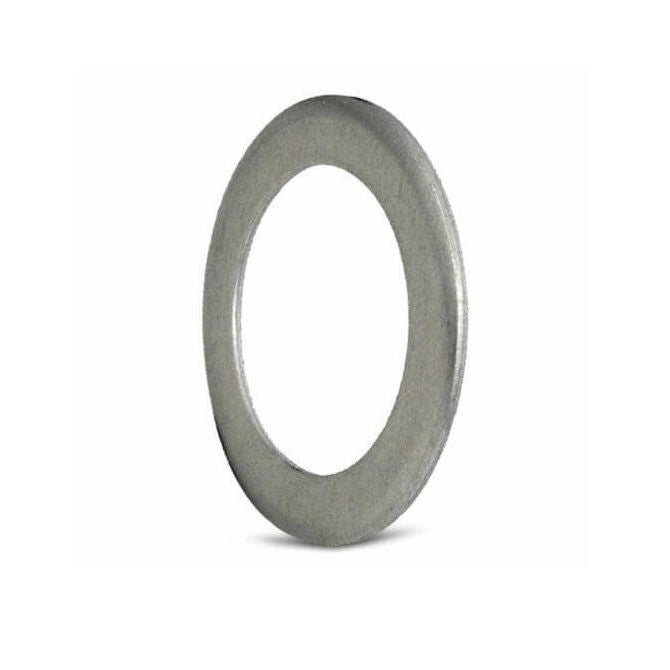

Pulley Flanges - Timing - Suit 2.000mm GT Series - AluminiumAluminium Suit 2.000mm GT Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys. Use with GT2 or GT3 type belts.
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
- Use with GT2 or GT3 type belts.
Product Data
- Inside Diameter (d)
:
26.500
mm
(Equiv. 1.043 in.) - Outside Diameter (D)
34.00
mm
(Equiv. 1.339 in.) - Suits Pulley Grooves 45 No.
- Width (H) 1.52 mm
- Thickness (S) 1.02 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 45-2P-FA
- A6A50M045FA
- 452PFA
