Miniature Bearings Australia
P-030G-025-090FF-AL-G-064 - Datasheet
MBA
Category Information

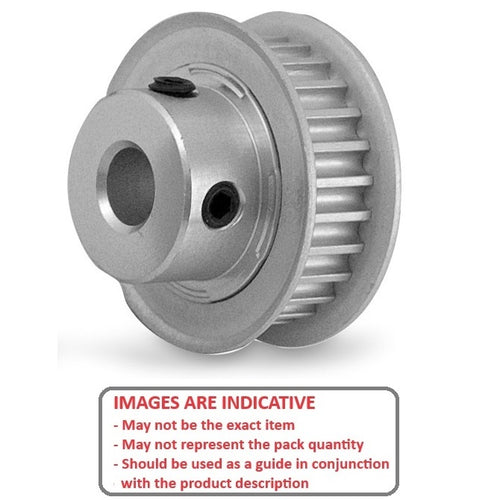

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - ThroughThrough Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Finished through bore ready for assembly
- Set screw locking
Product Data
- Number of Teeth : 25
- Max Belt Width
9.00
mm
(Equiv. 0.354 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Bore Type Finished
- Locking Type Set Screw

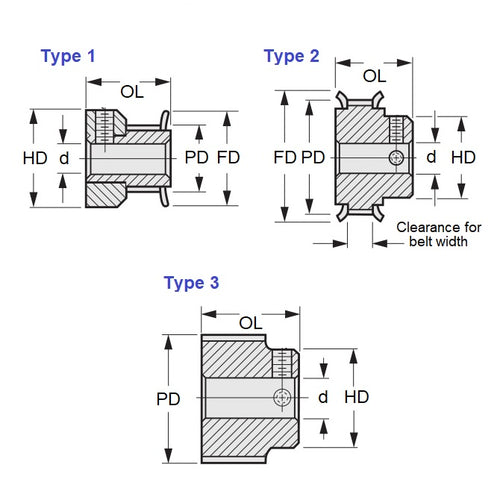

- Type 2
- Pitch Dia. (PD) 23.86 mm
- Flange Diameter (FD) 26.9 mm
- Overall Length 20.6 mm
- Hub Diameter (HD) 15.9
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 25-3P09-6FA3
- 3764N131
- 253P096FA3
- A6A53-025DF0908
- A6A53025DF0908
