PLI-P-250-500-42-L-BG - Datasheet

MBA

Category Information

Plungers - Indexing Precision - Ball Grip - Locking

Locking Ball Grip Indexing Precision Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

    Product Data

    • Body Diameter (I) : 38.00 mm
      (Equiv. 1.496 in.)
    • Body Length (D) 60.0 mm
      (Equiv. 2.362 in.)
    • Initial End Force 4.0 N
    • Final End Force 7.4 N
    • Tip Diameter (A) 25.0 mm
    • Min K 6.0 mm
    • Knob Diameter (B) 50.0 mm
    • Knob Length (G) 58.5 mm
    • Internal Thread of Grip Ball M10.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-871
      • KBP871
      View full details

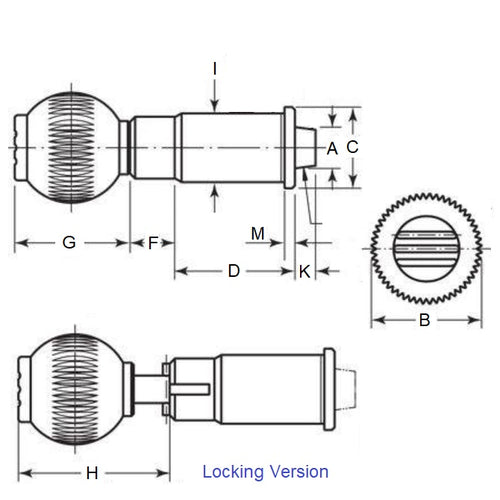

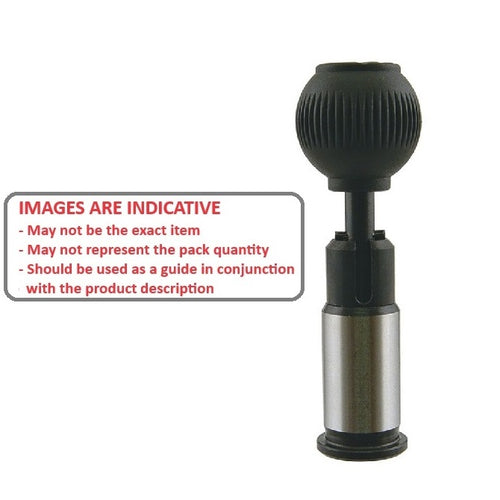

      PLI-P-250-500-42-L-BGDiagramPLI-P-250-500-42-L-BGImage
