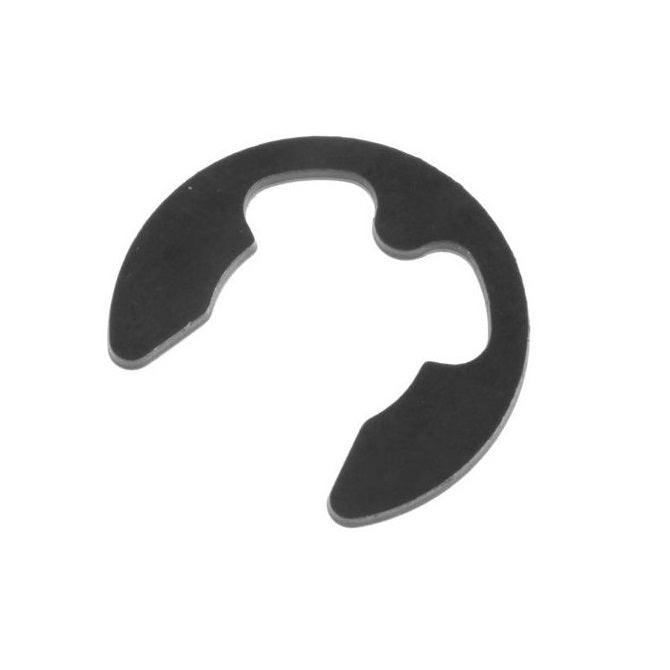

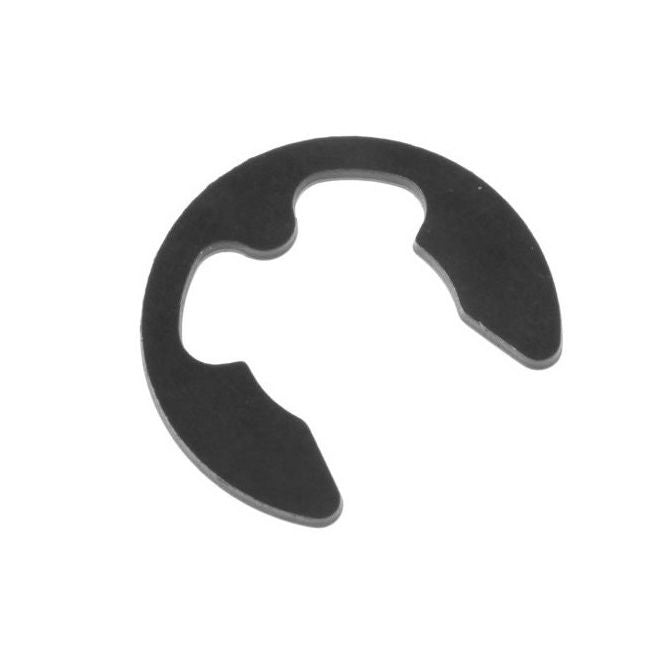

ECL-0240-0250-C - Datasheet
MBA
Category Information
Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
25.00
mm
+ 13.00 / - 0.00
(Equiv. 0.984 in.) - Groove Dia. (Dg)
24.00
mm
+ 0.00 / - 0.13
(Equiv. 0.945 in.) - Clip Thickness (T)
2.00
mm
+/ - 0.03
(Equiv. 0.079 in.) - Clip OD Loose (D1) 43.65 mm
- Groove Width (W) 2.05 mm
- Maximum Rec. Shaft Dia (S) 38.00
- Clip OD in groove (C1) 44.60 mm
- Loose Clip ID (A) 21.88 mm
- Min. Extension (n) 4.00
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98543A222
- NoCor DE-240
- Cirteq RA24.0
- 15000240
- 1500-0240
- 15000240APP
- 1500-0240APP
- D15000240APP
- DE240
- D1500-0240APP
