WRI-0250-LS - Datasheet
MBA
Category Information

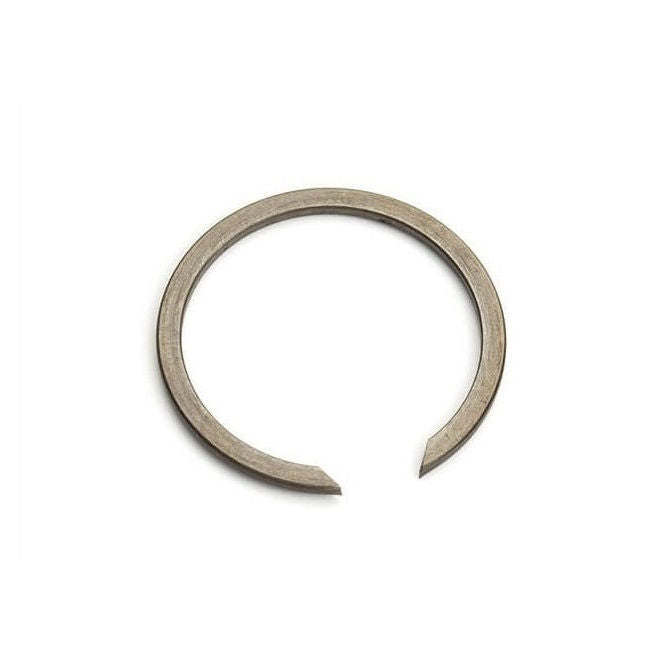

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
25.00
mm
(Equiv. 0.984 in.) - Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.) - Groove Dia. (Dg)
25.80
mm
+ 0.13 / - 0.00
(Equiv. 1.016 in.) - Approx. Loose Circlip OD (Dr) 26.20 mm
- Section (Rd) 1.75 mm + 0 / - 0.10
- Groove Width (W) 1.30 mm
- Approx. Loose Clip ID 22.7
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSB-025
- Seeger SB25
- Seeger SB25-BLS
- DSB025
- WRI0250SQ
- SB25BLS
- M23000250APP
- M2300-0250APP
