ED16RS - Datasheet

ACE

Category Information

Shock Absorbers - Double Acting Hydraulic

Double Acting Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 254.0 mm
      (Equiv. 10 in.)
    • Type Tension and Adjustable
    • Length (F/L) 377.70 / 401.32 mm
      (Equiv. 14.87 in.)
    • Max Extention 655 mm
    • Max Propelling Force Exten 204 KG
    • Max Propel Force Compression 57 KG
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-16
      • ED16
      View full details

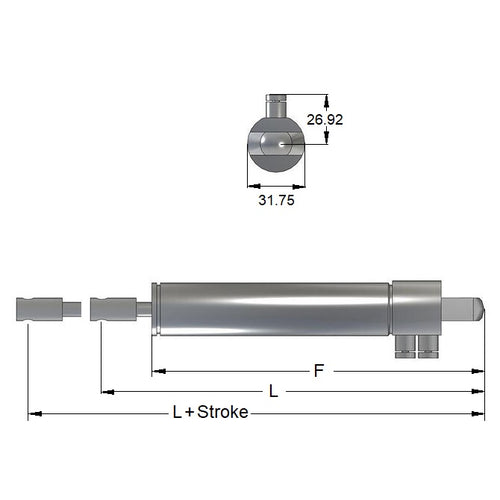

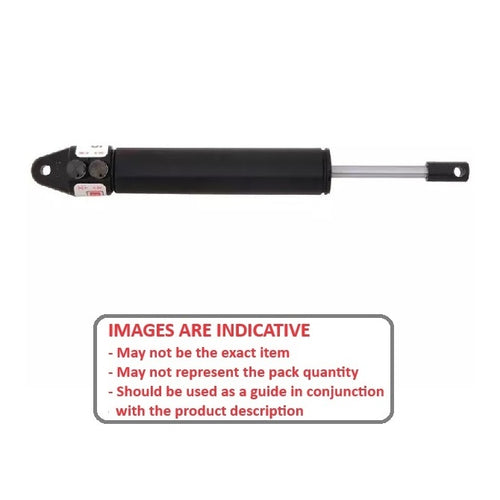

      ED16RSDiagramED16RSImage
