GAS142RS - Datasheet

MBA

Category Information

Gas Springs - Fixed Force

Fixed Force Gas Springs. Provides mechanical assistance for lifting and supporting various components. Fixed Force.

    Product Data

    • Stroke (C) : 254.0 mm
      (Equiv. 10 in.)
    • Extended Length 706.12 mm
      (Equiv. 27.8 in.)
    • Extended Force 54.43 KG
    • Shaft Diameter (A) 9.91 mm
    • Body Diameter (B) 22.10 mm
    • Thread M6 x 1.0
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS142
      • GAS-142
      View full details

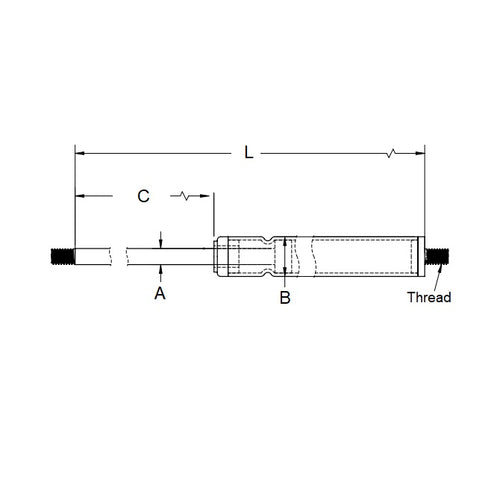

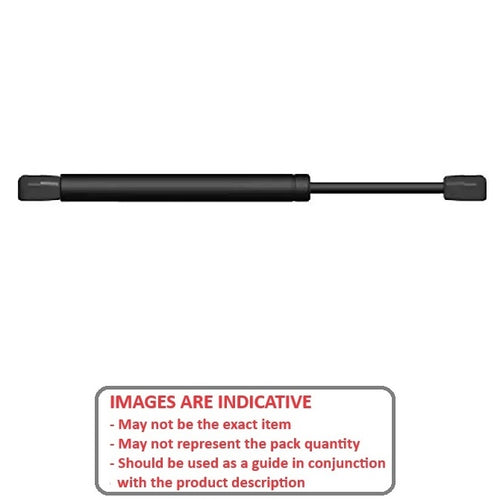

      GAS142RSDiagramGAS142RSImage
