RAD5249-1 - Datasheet
MBA
Category Information

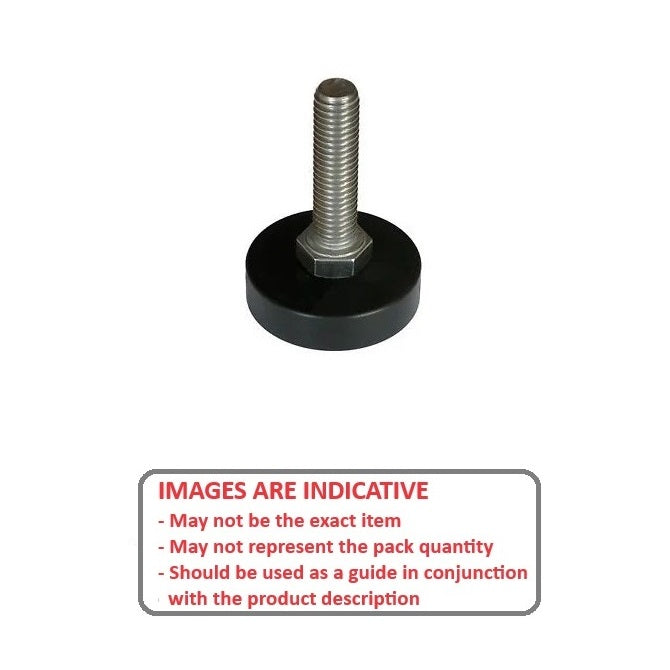

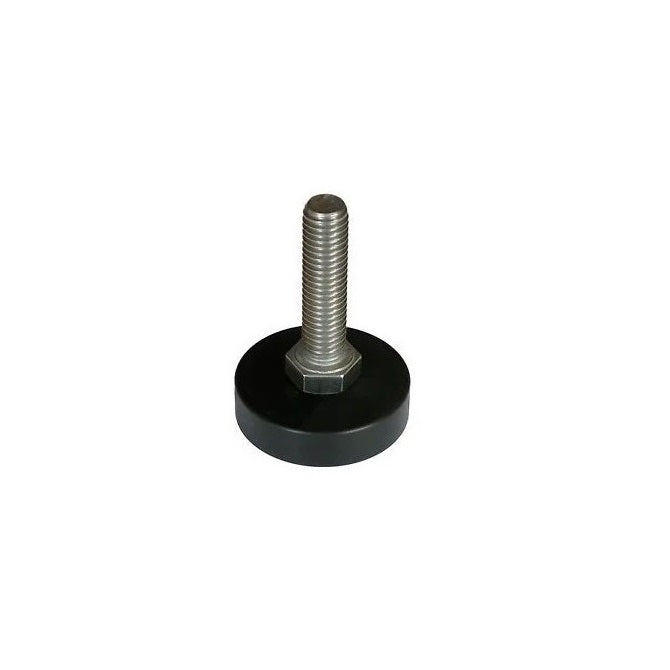

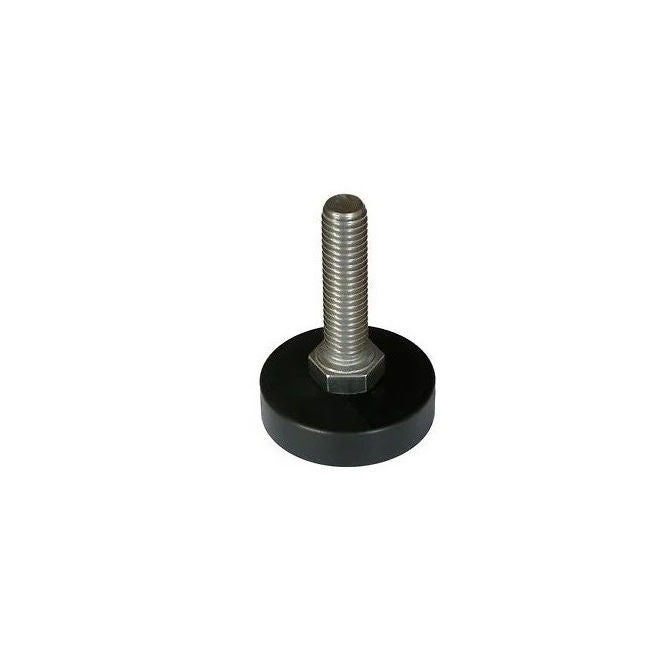

Mounts - Levelling Studded - Basic - Rigid AdjustersRigid Adjusters Basic Levelling Studded Mounts. Adjustable supports for all kinds of machinery.
- An expanded range may be available on special order. Please enquire.
- Mild steel bright zinc plated.
- Screwdriver cross recess in base.
- Use as mounting feet.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

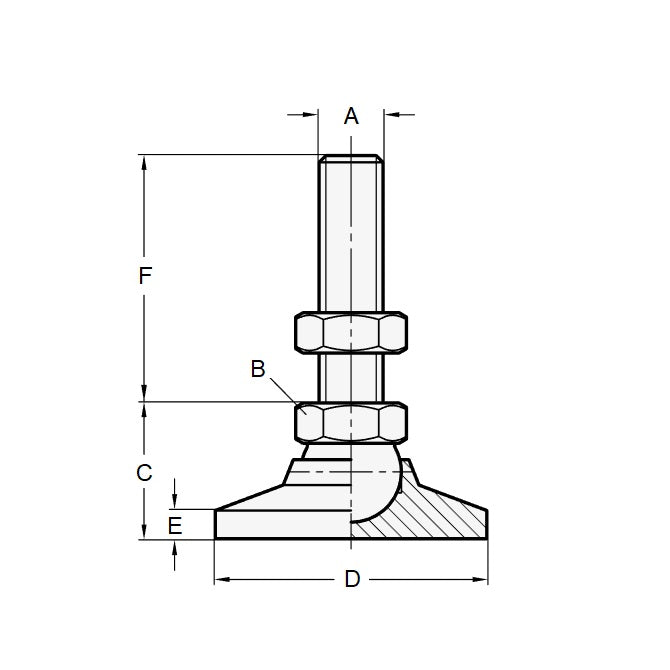

- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
30.0
mm
(Equiv. 1.181 in.) - Foot Height (C)
10.5
mm
(Equiv. 0.413 in.) - Thread Length (F) 25 mm
- Base Height (E) 10.5 mm
- Overall Height 35.5 mm
- Max Static Load 250 Kg
- Style 2
- Material Polyamide
