AD-4225 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.0 mm
      (Equiv. 0.984 in.)
    • Thread (C) M42x1.5 (42.0mm)
    • Length (A) 186.5 mm
      (Equiv. 7.343 in.)
    • Shaft Size (D) 12.0 mm
    • Max. Effective Mass 3000 Kg
    • Max. Nm Per Cycle 260 Nm
    • Max. Nm Per Hour 125000 Nm
    • Max Impact Speed 3.5 m/s
    • Weight 1280 g
    • Body Length (B) 127.5 mm
    • Tip Diameter (C) 44.5 mm
    • Tip Length (E) 34.0 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

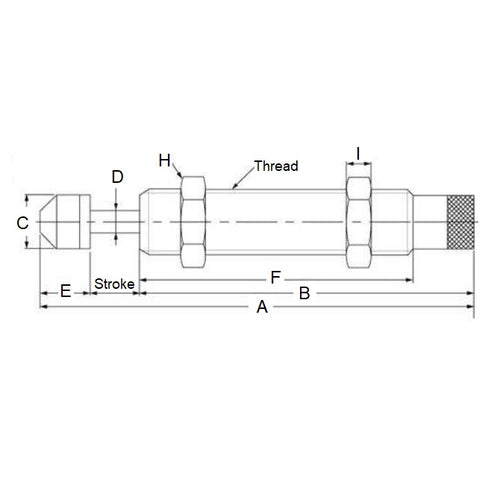

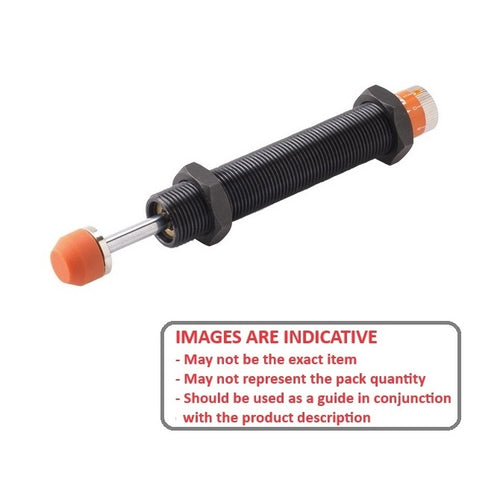

      AD-4225DiagramAD-4225Image
