AD-1425 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.0 mm
      (Equiv. 0.984 in.)
    • Thread (C) M14x1.5 (14.0mm)
    • Length (A) 153.2 mm
      (Equiv. 6.031 in.)
    • Shaft Size (D) 4.0 mm
    • Max. Effective Mass 140 Kg
    • Max. Nm Per Cycle 28 Nm
    • Max. Nm Per Hour 27500 Nm
    • Max Impact Speed 3.0 m/s
    • Weight 190 g
    • Body Length (B) 117.0 mm
    • Tip Diameter (C) 12.0 mm
    • Tip Length (E) 11.2 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

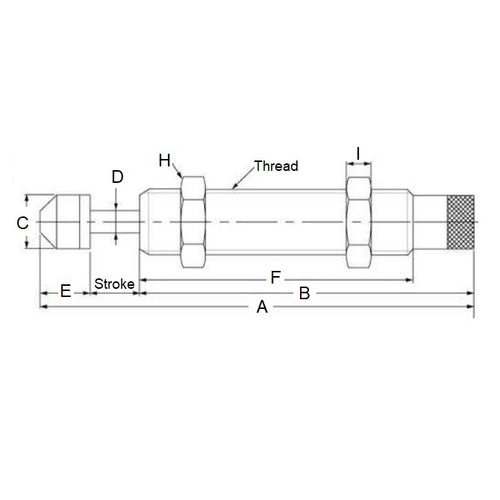

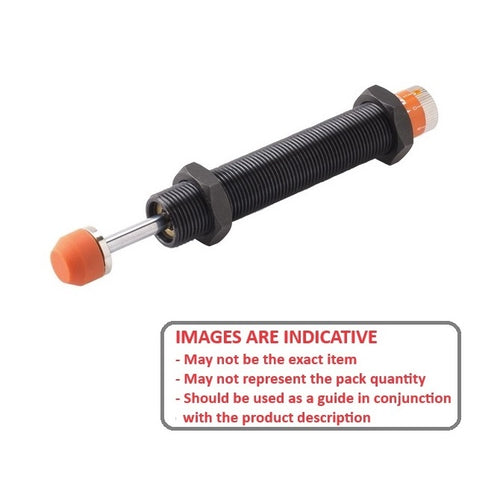

      AD-1425DiagramAD-1425Image
