BTU0025-010-F-C - Datasheet
MBA
Category Information

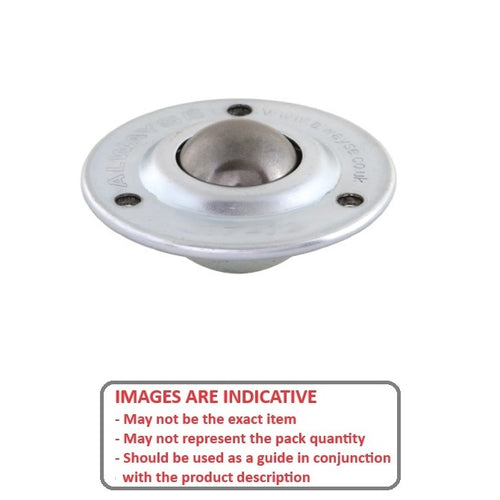

Ball Transfer Units - Flange Mount - Standard - Steel - SlimSlim Steel Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Max Load : 25 kg

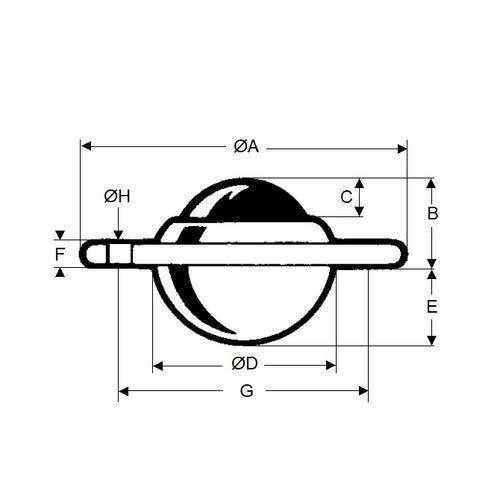

- Ball Height from Flange (B)
10
mm
(Equiv. 0.394 in.) - Body Diameter (D)
61.0
mm
+/- 0.2
(Equiv. 2.402 in.) - Overall Height (L) 22.0 mm
- Ball Diameter 19.0 mm
- Body Height (E) 12.0 mm
- Flange Diameter (A) 61.0 mm +/- 0.2
- Flange Thickness (F) 3.2 mm
- Fixing Hole Size (H) 5.1 mm
- Fixing Hole Distance (G) 44.5 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- BISF-19C
- BISF19C
