CCE-02598-CZY - Datasheet

MBA

Category Information

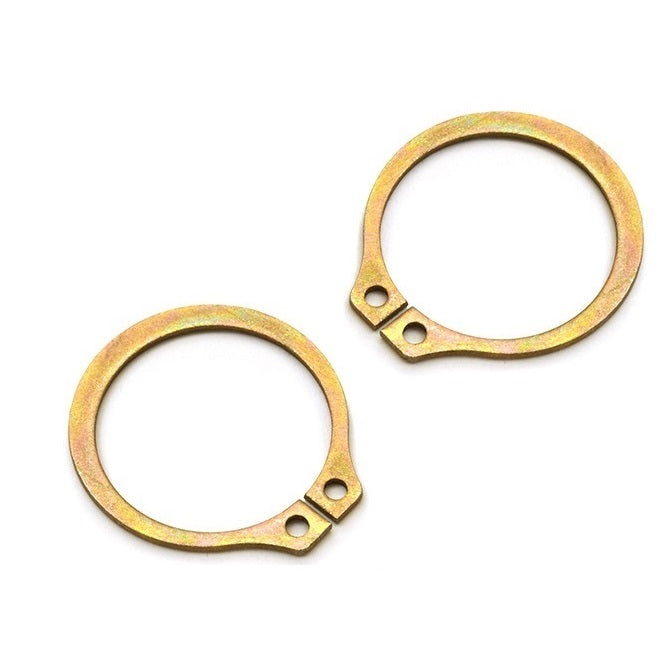

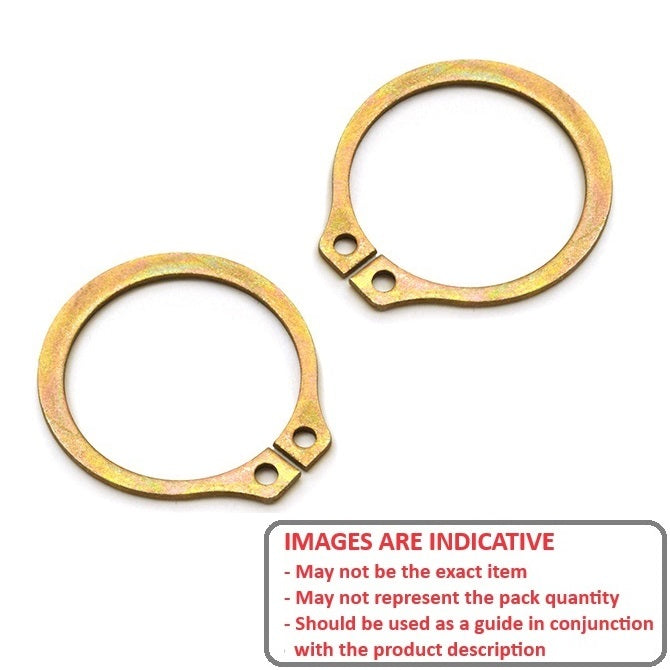

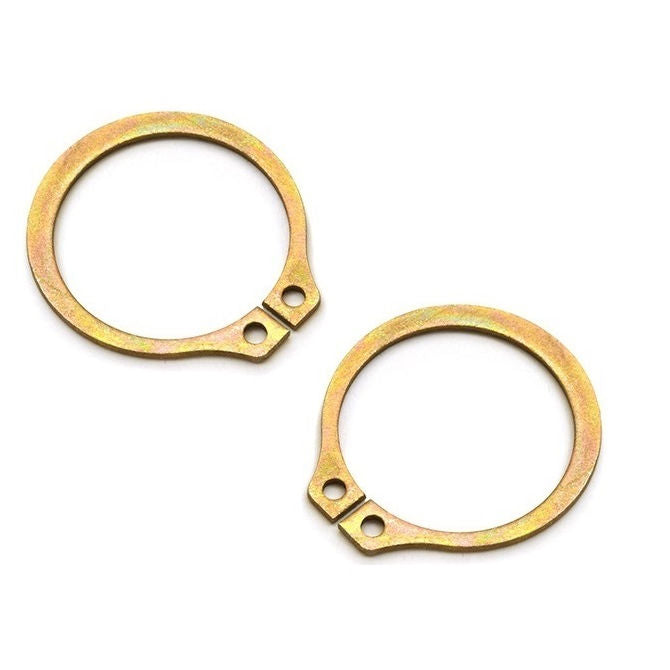

Retaining Rings - External - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Zinc plated carbon steel

Product Data

  • Shaft Diameter (Ds) : 25.98 mm
  • Clip Thickness (T) 1.07 mm +/- 0.051
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 24.40 mm +/- 0.076
    (Equiv. 0.961 in.)
  • Approx. Loose Circlip ID (A) 24.00 mm
  • Groove Width (W) 1.20 mm
  • Standard MIL-16624
  • Material Carbon Steel Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Huyett® SH-102-ZD
  • NoCor® SH-102-ZD
  • SH102ZD
  • N14000102AZD
  • N1400-0102AZD
