Miniature Bearings Australia
UFL005N - Datasheet
MBA
Category Information

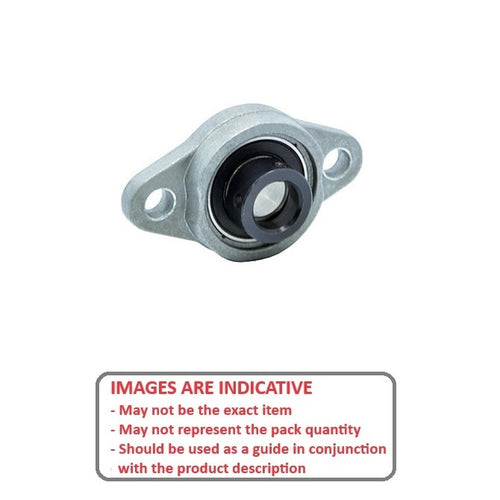

Housing Assembly - Flanged 2 Bolt - Non Aligning - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- An expanded range may be available on special order. Please enquire.
Product Data

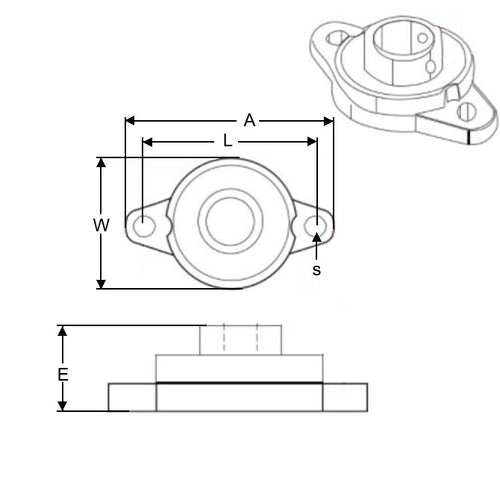

- Nominal Shaft Size
:
25.0
mm
(Equiv. 0.984 in.) - Width (W)
60.0
mm
(Equiv. 2.362 in.) - Overall Length (A)
95.0
mm
(Equiv. 3.74 in.) - Overall Height (E) 27.5 mm
- Bolt Hole Size (s) 10.0 mm
- Bolt Hole Centres (L) 75.0 mm
- Material Aluminium
