NART25VUUR - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 25.00 mm
    • O.D. (D) 52.00 mm
    • Width (C) 24.00 mm
    • Inner Ring Width (B) 25.00 mm
    • OD Type Radius (500mm)
    • Dynamic Load Rating 4640.00 kgf
    • Static Load Rating 8060.00 kgf
    • Closures Shields with Seal
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NART-25VUUR
      • NART25VUUR
      View full details

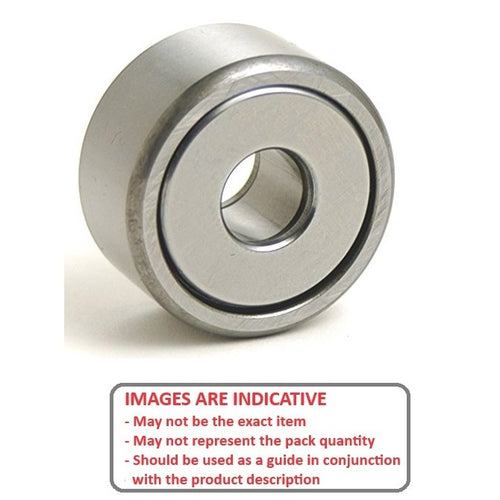

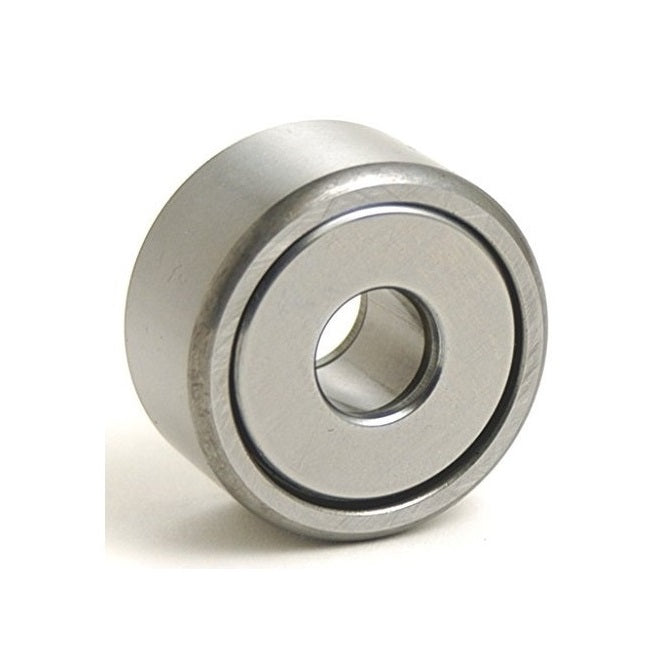

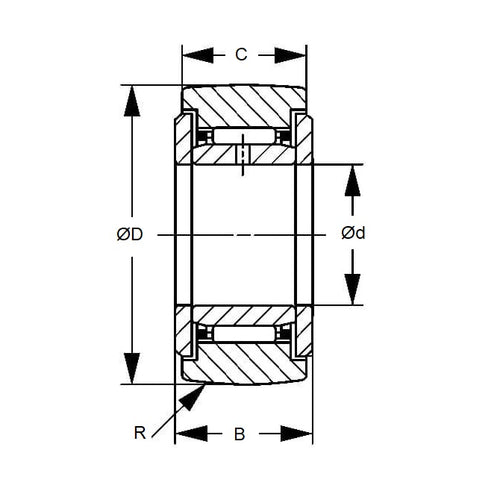

      NART25VUURDiagramNART25VUURImage
