NAST25ZZUU - Datasheet
MBA
Category Information

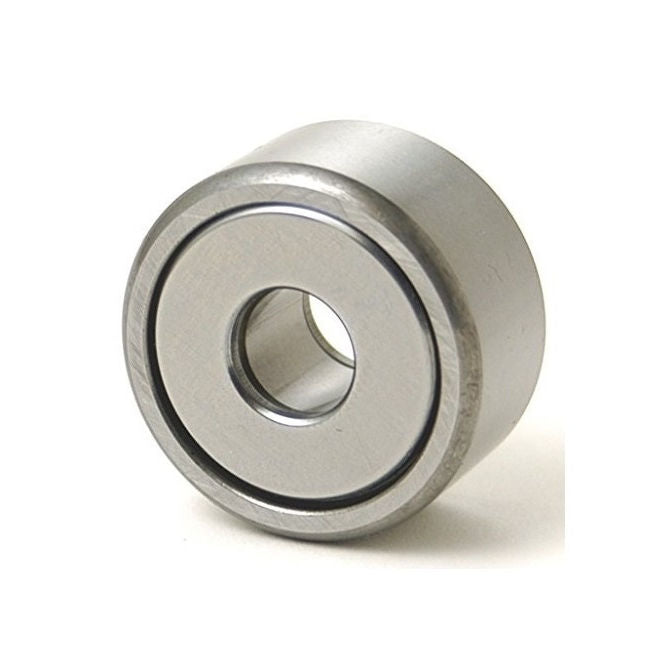

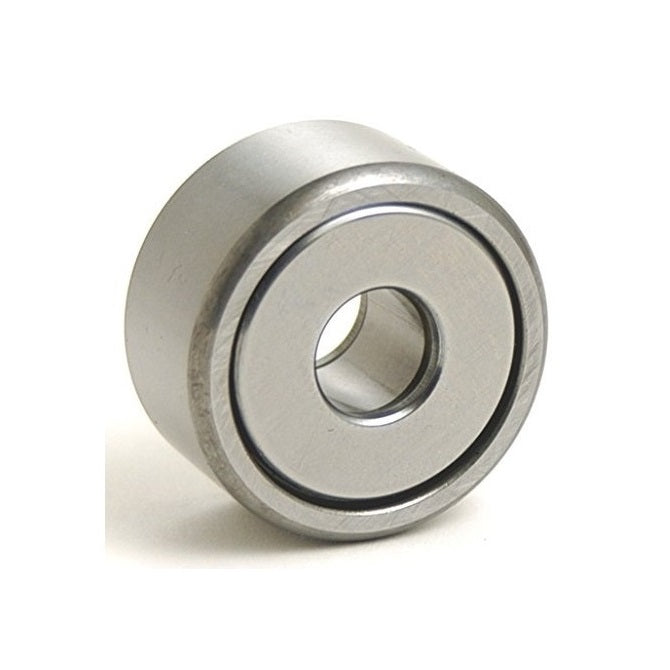

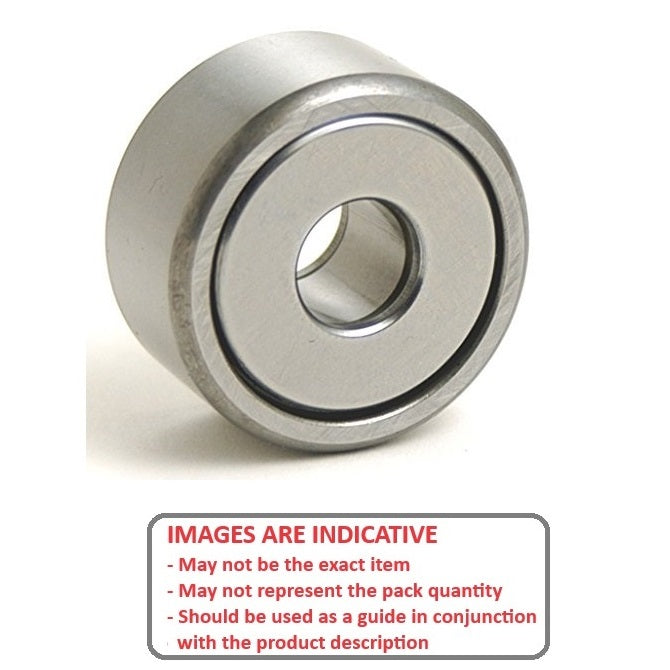

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

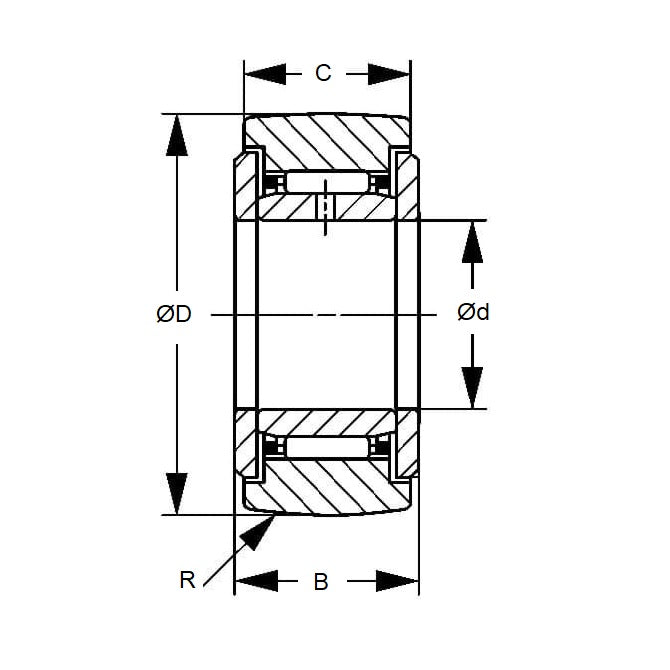

- ID (d)
:
25.00
mm
(Equiv. 0.984 in.) - OD (D)
52.00
mm
(Equiv. 2.047 in.) - Width (C)
19.80
mm
(Equiv. 0.78 in.) - Inner Ring Width (B) 20.00 mm
- OD Type Cylindrical
- Dynamic Load Rating 2120.00 kgf
- Static Load Rating 2890.00 kgf
- Closures Shields with Seal
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NAST-25-ZZUU
- IKO NAST25-ZZUU
- NAST25ZZUU
