W0254-SQ-064-064-C - Datasheet

MBA

Category Information

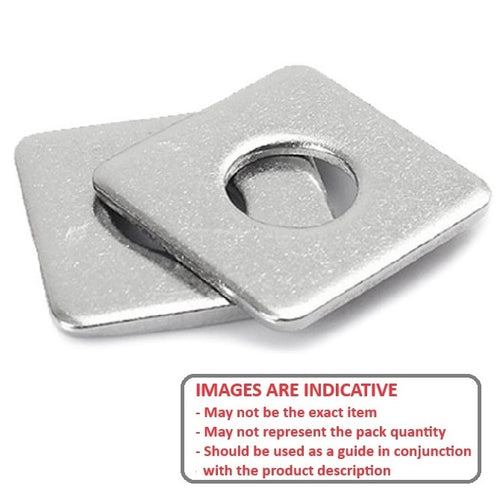

Washers - Square - Heavy Duty - Steel

Steel Heavy Duty Square Washers. Zinc plated and carbon steel selection.

  • Square washers are designed to distribute loads and prevent rotation when placed in a square recess or used with square neck screws.
  • Often used in structural applications where greater stability and load distribution are needed than what a standard round washer provides.

Product Data

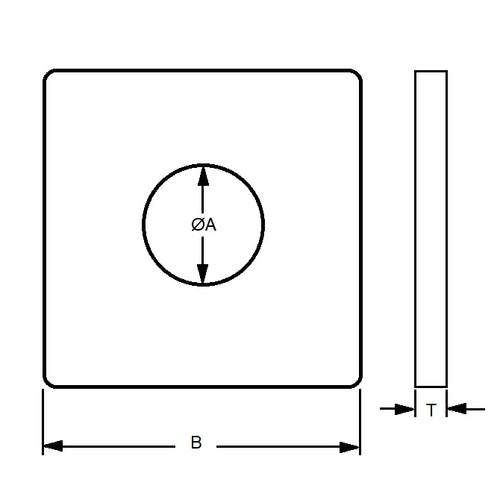

  • Nominal Inside Diameter (A) : 25.4 mm
  • Outside Length (B) 63.5 mm
  • Thickness 6.35 mm
  • Actual ID (Ref) 26.988 mm
  • Material Carbon Spring Steel Self Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JSW-37
  • JSW37
