COH-02540-054-13-2P-S3 - Datasheet
MBA
Category Information

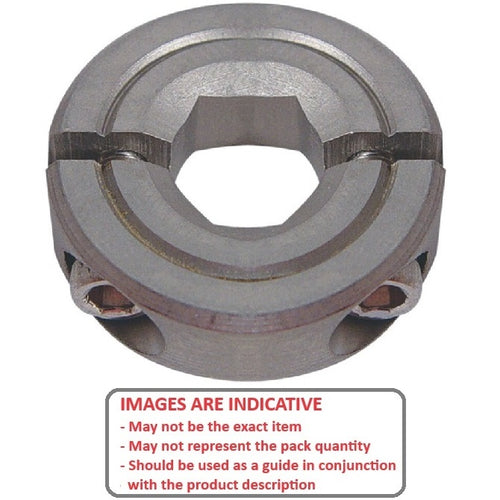

Collars - Hex Bore - Two Piece - 303 Stainless Steel303 Stainless Steel Two Piece Hex Bore Collars. This is the main category in this series
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
Product Data
- Suitable Shaft Size (d) : 25.400 mm
- Outside Diameter (D) 54.00 mm
- Overall Width (S) 12.7 mm
- Screw Size 1/4-28 UNF (6.35mm)
- Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CTC-657
- CTC657
