COH-02540-054-13-1P-CS - Datasheet

MBA

Category Information

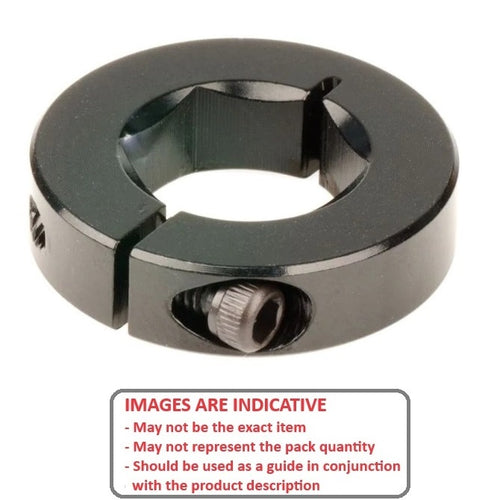

Collars - Hex Bore - One Piece - Steel

Steel One Piece Hex Bore Collars. This is the main category in this series

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

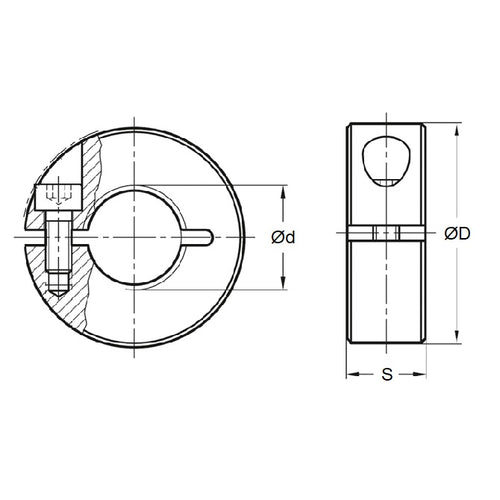

Product Data

  • Suitable Shaft Size (d) : 25.400 mm
    (Equiv. 1 in.)
  • Outside Diameter (D) 54.00 mm
    (Equiv. 2.126 in.)
  • Overall Width (S) 12.7 mm
    (Equiv. 0.5 in.)
  • Screw Size 1/4-28 UNF (6.35mm)
  • Material Steel - Mild
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • CTC-507
  • CTC507
