COL-02540-051-13-HG-S3 - Datasheet
MBA
Category Information

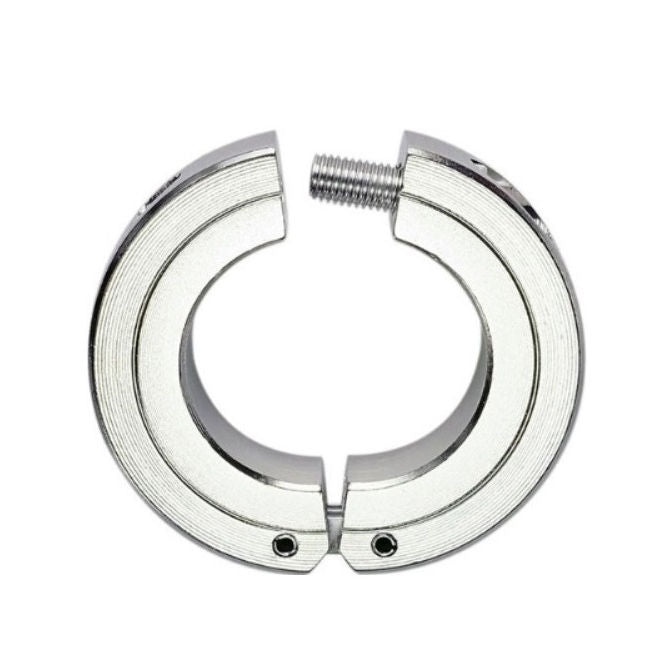

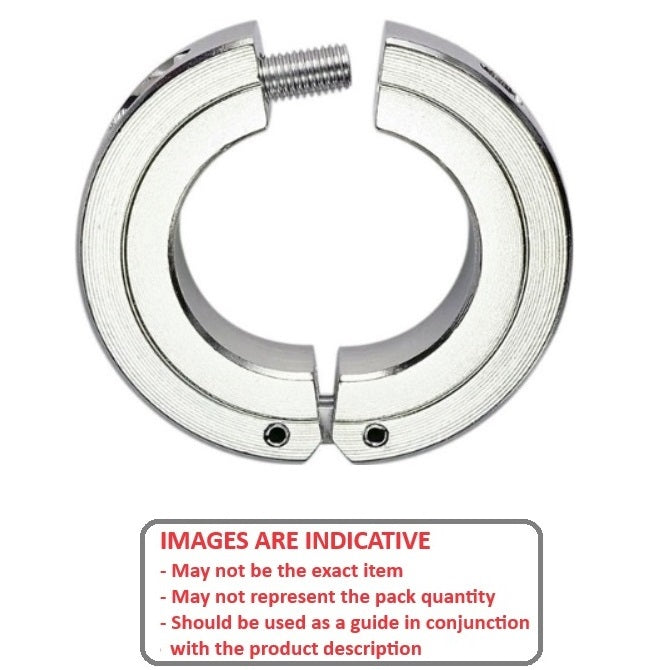

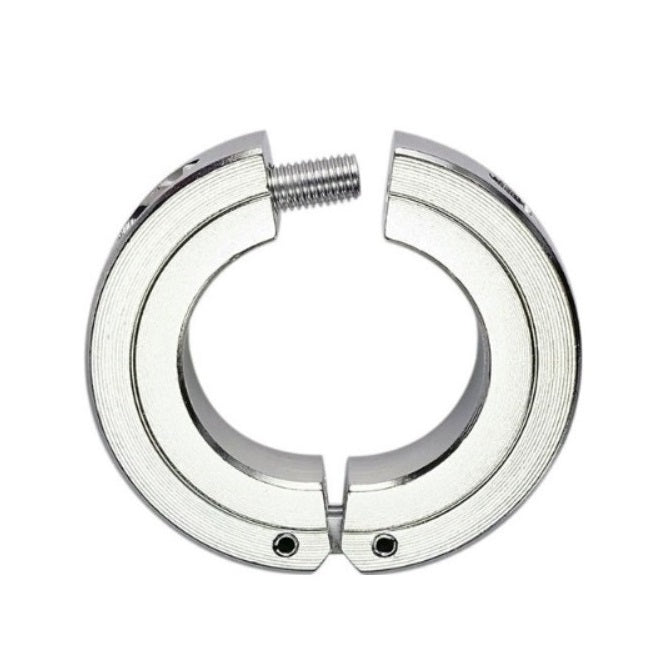

Collars - Shaft - Hinged - Stainless SteelStainless Steel Hinged Shaft Collars. Precision machined. Convenient easy-to-assemble design. 303 Stainless Steel
- Same axial load handling capabilities as standard two piece collars.
- Captive clamp screw eliminates lost screws.
- The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
- Easily Machinable / Open Completely.
- Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.

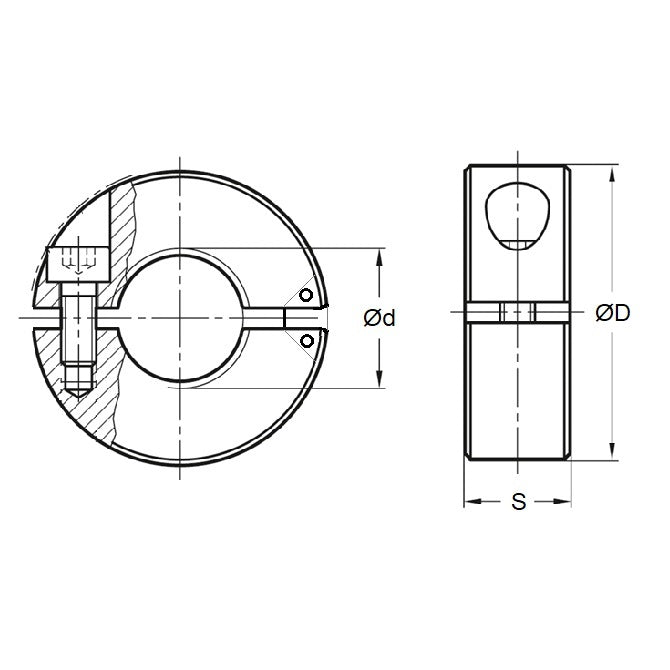

Product Data
- Suitable Shaft Size (d)
:
25.400
mm
(Equiv. 1 in.) - Outside Diameter (D)
50.80
mm
(Equiv. 2 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Screw Size 1/4-28 UNF (6.35mm)
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 57145K56
- CTC405SS
- CTC-405SS
