COL-02540-041-16-NY - Datasheet
MBA
Category Information

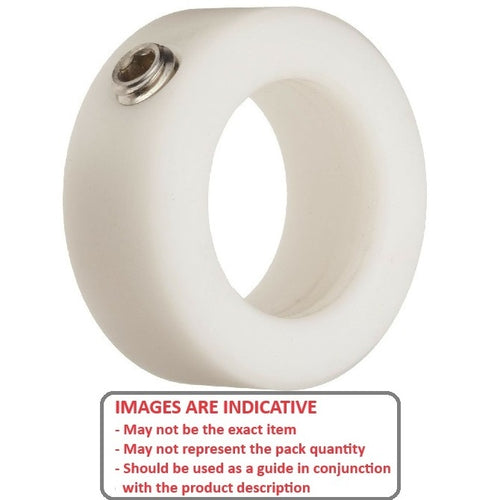

Collars - Shaft - Standard - NylonNylon Standard Shaft Collars. Standard one piece nylon shaft collar with set screw
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
25.400
mm
(Equiv. 1 in.) - Outside Diameter (D)
41.28
mm
(Equiv. 1.625 in.) - Overall Width (S)
15.9
mm
(Equiv. 0.626 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-1000-NY
- SC1000NY
