W0254-LE-041-017-CZ - Datasheet

MBA

Category Information

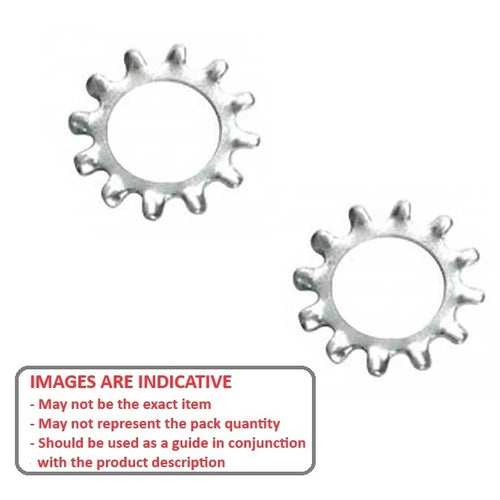

Washers - Lock - External Tooth - Spring Steel

Spring Steel External Tooth Lock Washers. Spring steel, external toothed selection.

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.

Product Data

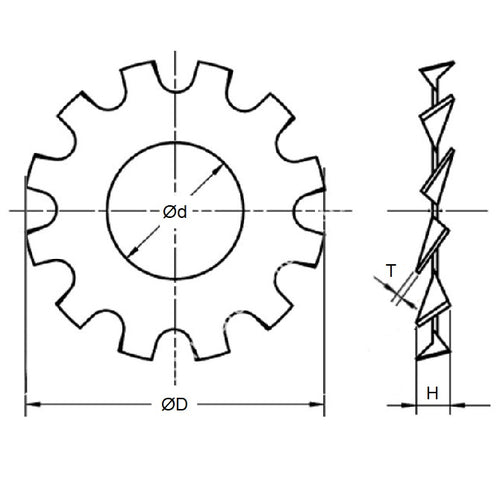

  • Nominal Inside Diameter : 25.40 mm
    (Equiv. 1 in.)
  • Outside Diameter 41.1 mm
    (Equiv. 1.618 in.)
  • Material Thickness (T) 1.70 mm
    (Equiv. 0.067 in.)
  • Nominal Screw Size M25, 1 in.
  • Actual ID (Ref) 26 mm
  • Material Zinc Plated Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • WASCA 1002105
  • 91114A038
  • WASCA WLESZNP1
