WRE-0254-RD-HC - Datasheet
MBA
Category Information

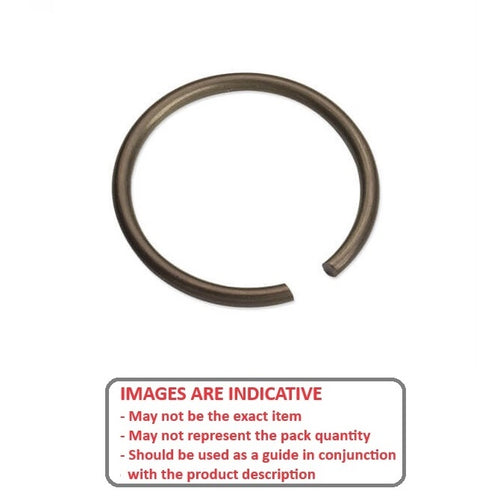

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

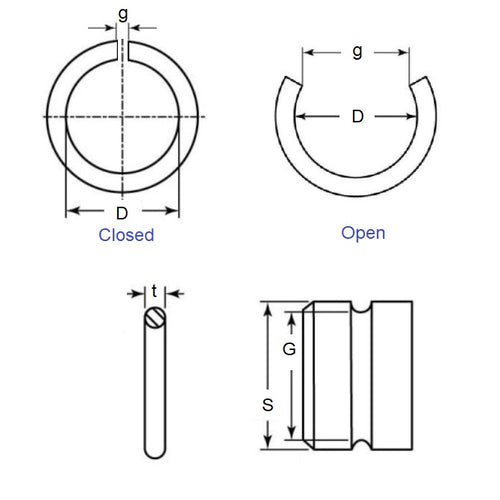

Product Data
- Shaft Diameter (Ds)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.) - Groove Dia. (Dg)
23.52
mm
+ /- 0.08
(Equiv. 0.926 in.) - Approx. Loose Circlip ID (A) 23.29 mm
- Radial Wall (S) min/max 23.52 mm
- Groove Width (W) 3.05 mm
- Free Outside Dia (Dr) 29.29
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-339
- Arcon XRC-339
- NoCor XRC-339
- XRC339
- 100339
- A0900339
- A0900-339
