AU-971RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Counterbored

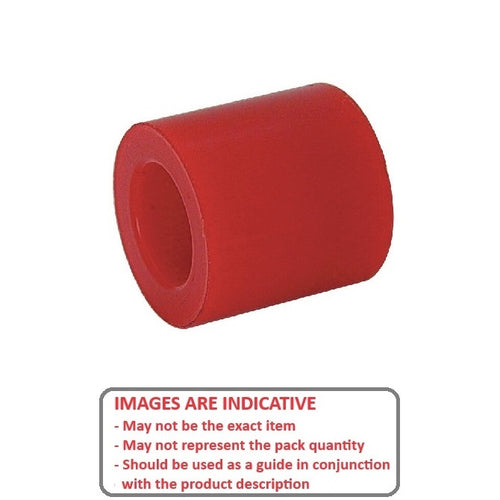

Cylindrical Counterbored Bumpers. With steel core and washer moulded inside. Counterbored hole to accept a socket head cap screw.

  • Also see Mounts - Buffers.

Product Data

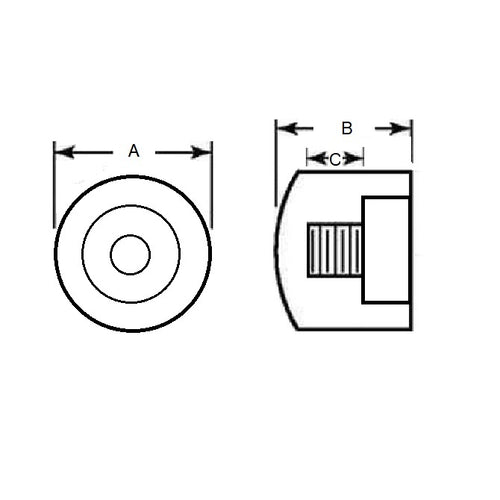

  • Diameter (A) : 25.400 mm
    (Equiv. 1 in.)
  • Height (B) 25.400 mm
    (Equiv. 1 in.)
  • Hole Diameter 6.35 mm
    (Equiv. 0.25 in.)
  • End Flat
  • Durometer 95A
  • Colour Red
  • Material Polyurethane 95A
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details
AU-971RSDiagramAU-971RSImage
