ECL-0218-0254-C-KR - Datasheet

MBA

Product Data

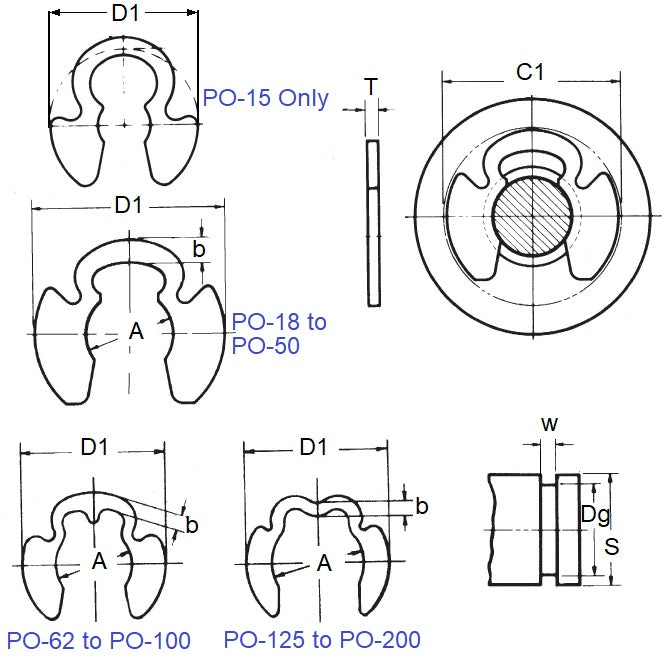

• Minimum Rec. Shaft Dia (S) : 25.40 mm _{+ 3.05 / - 0.00}
  (Equiv. 1 in.)
• Groove Dia. (Dg) 21.84 mm _{+/- 0.252}
  (Equiv. 0.86 in.)
• Clip Thickness (T) 1.98 mm _{+/ - 0.076}
  (Equiv. 0.078 in.)
• Clip OD Loose (D1) 35.94 mm
• Groove Width (W) 2.18 mm
• Maximum Rec. Shaft Dia (S) 28.45
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-100
• 98420A157
• NoCor PO-100
• Rotor Clip PO-100
• PO100
• 5304100
