WRE-0254-RD-C - Datasheet
MBA
Category Information

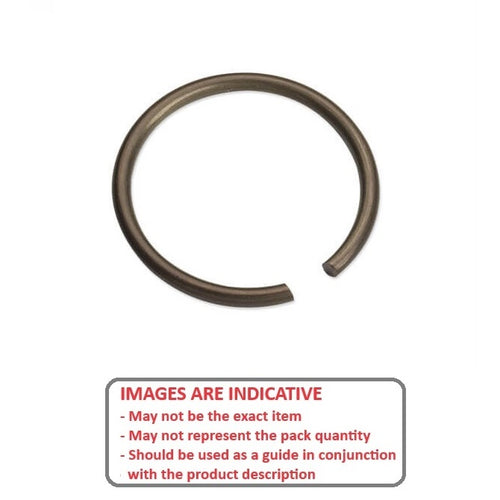

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

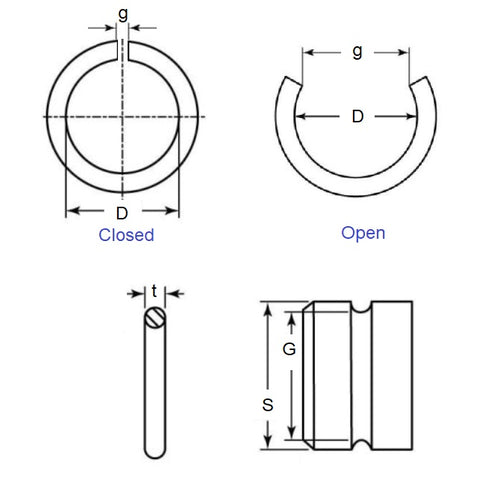

Product Data
- Shaft Diameter (Ds)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.) - Groove Dia. (Dg)
24.08
mm
+ /- 0.08
(Equiv. 0.948 in.) - Approx. Loose Circlip ID (A) 23.83 mm
- Radial Wall (S) min/max 24.08 mm
- Groove Width (W) 2.21 mm
- Free Outside Dia (Dr) 28.15
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-338
- Arcon XRC-338
- NoCor XRC-338
- XRC338
- 100338
- A0900-338
- A0900338
