W0254-CSW-C - Datasheet
MBA
Category Information

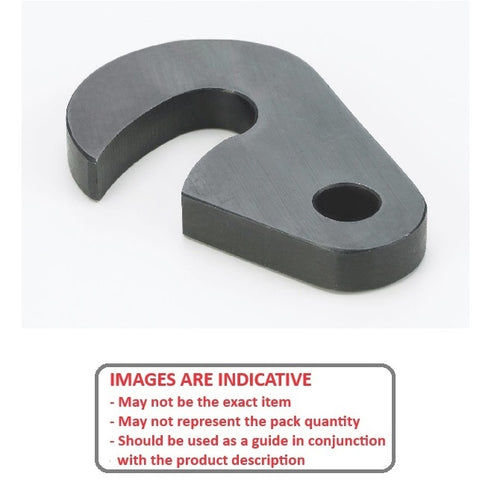

Washers - C - SwingSwing C Washers. Cold finished steel, hardened and ground with a black oxide finish.
- C washers gives the possiblity to adjust, remove or modfiy spacing without removal of the fastener.
- Specialized washers used in jigs, fixtures, and machinery for clamping. Design that allows it to swing out of the way after the clamping screw is loosened, facilitating easy workpiece insertion and removal.

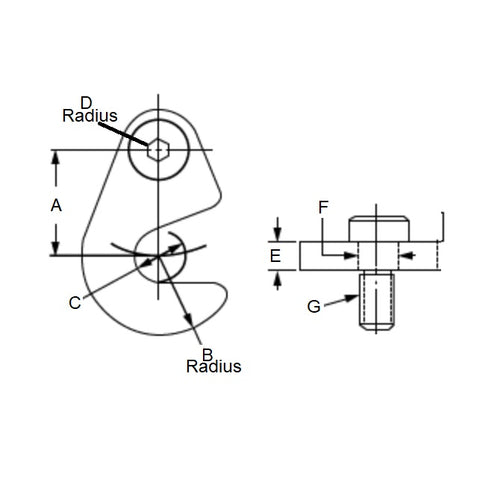

Product Data
- Centre Hole to Centre Groove (
:
25.40
mm
(Equiv. 1 in.) - Groove Radius (B)
19.05
mm
(Equiv. 0.75 in.) - Groove Diameter (C)
27.76
mm
(Equiv. 1.093 in.) - Hole Radius (D) 9.525 mm
- Thickness (E) 6.350 mm
- Bolt Hole (F) 7.925 mm
- Screw Size 1/4-20
- Material Carbon Spring Steel Self Finish
