BF0191-0254-0127-DP - Datasheet
MBA
Category Information

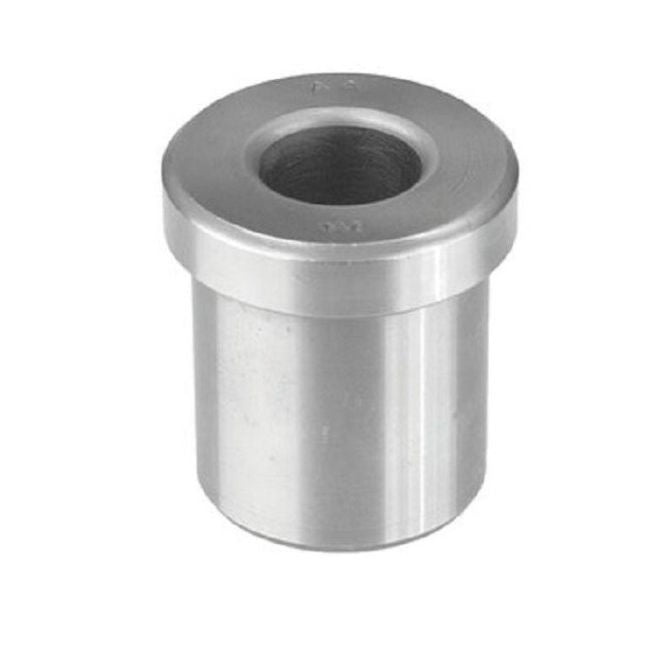

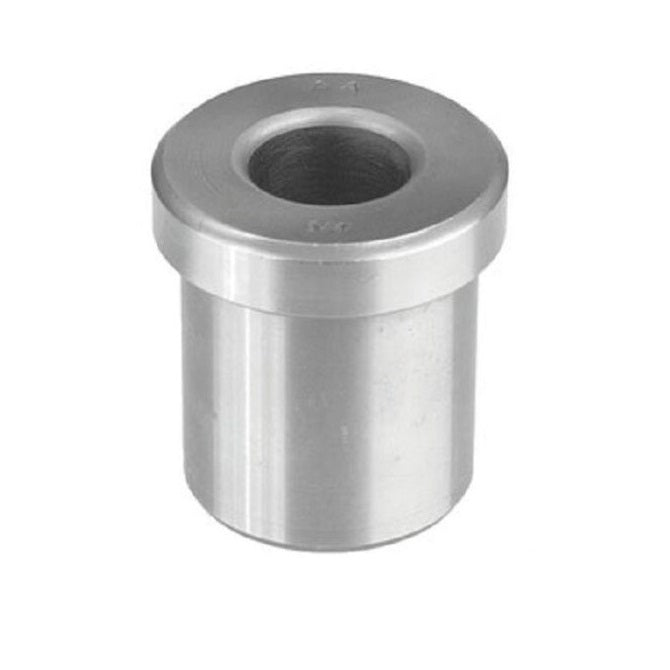

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
25.400
mm
+ 0.0381 / + 0.0457
(Equiv. 1 in.) - Drill Size
19.050
mm
+ 0.0025 / + 0.0127
(Equiv. 0.75 in.) - Length
12.700
mm
(Equiv. 0.5 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A302
- BHT-37010
- BHT37010
