Miniature Bearings Australia

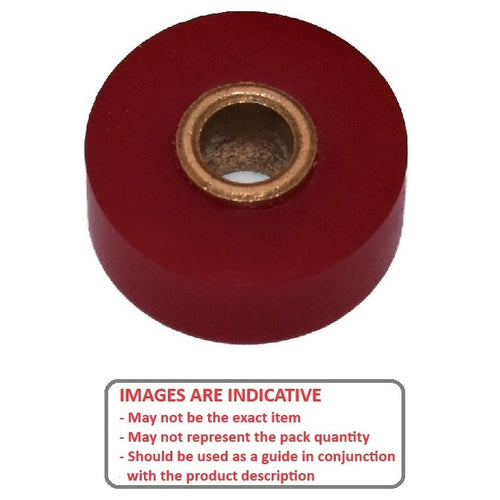

RR1020RS - Datasheet
MBA
Category Information
Rollers - Idler with Bearing - Urethane With Plain Sintered BearingUrethane With Plain Sintered Bearing Idler with Bearing Rollers. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

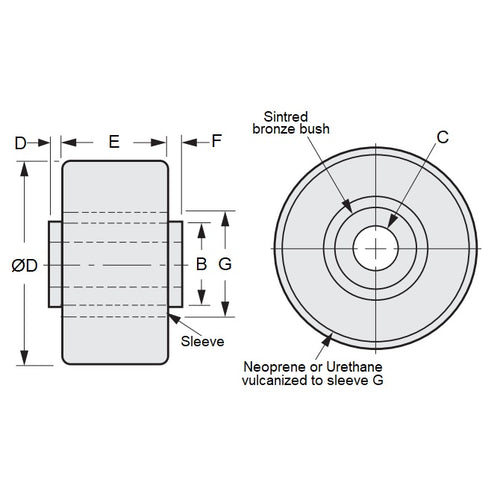

- Outside Diameter (A) : 25.40 mm
- Bore (d) 6.375 mm
- Roller Width (B) 12.70 mm
- Roller Material Neoprene
- Roller Hardness 55 Durometer
- Bearing Type Sintered Bronze Bearing
- Bearing Projection ( D / F ) 0.13 x 0.13 mm
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- 60885K87
- Reid Tool® RR-1020
- RR1020
