RR-100-S02 - Datasheet

MBA

Category Information

Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel

Stainless Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Product Data

  • Housing Bore (B) : 25.40 mm
    (Equiv. 1 in.)
  • Clip Thickness (T) 0.94 mm +/- 0.05
    (Equiv. 0.037 in.)
  • Groove Dia. (Dg) 26.50 mm
    (Equiv. 1.043 in.)
  • Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00
  • Radial Wall (S) 1.91 mm +/- 0.11
  • Groove Width (W) 1.11 mm +/- 0.07
  • Approx. Loose Clip ID 22.7 +/- 0.03
  • Groove Depth (d) 0.53
  • Material Stainless Steel 302/304 (Similar to A2, 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93427A150
  • Associated Spring AI-100-S02
  • NoCor WH-100-S02
  • Smalley WH-100-S02
  • Spirolox WH-100-S02
  • WH100S02
  • AI100S02
View full details

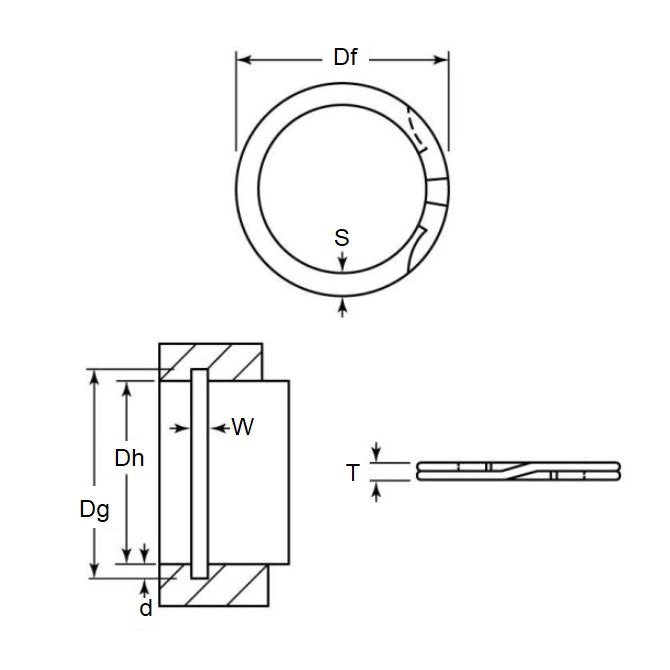

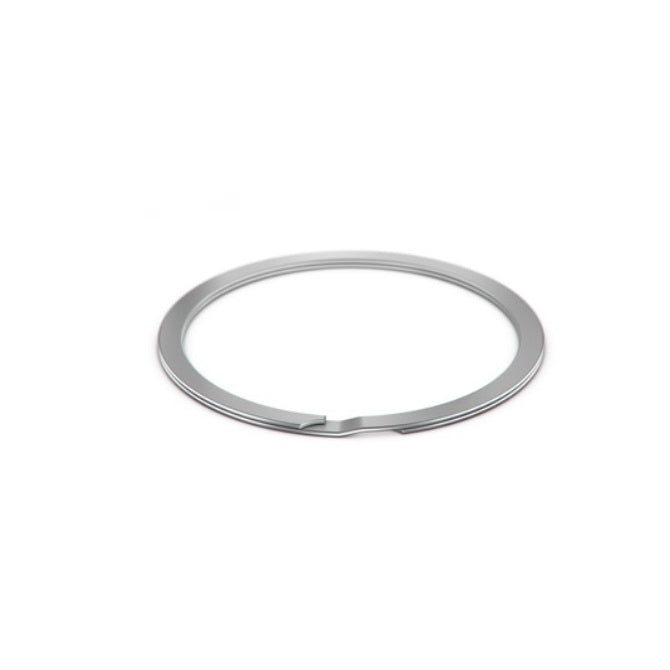

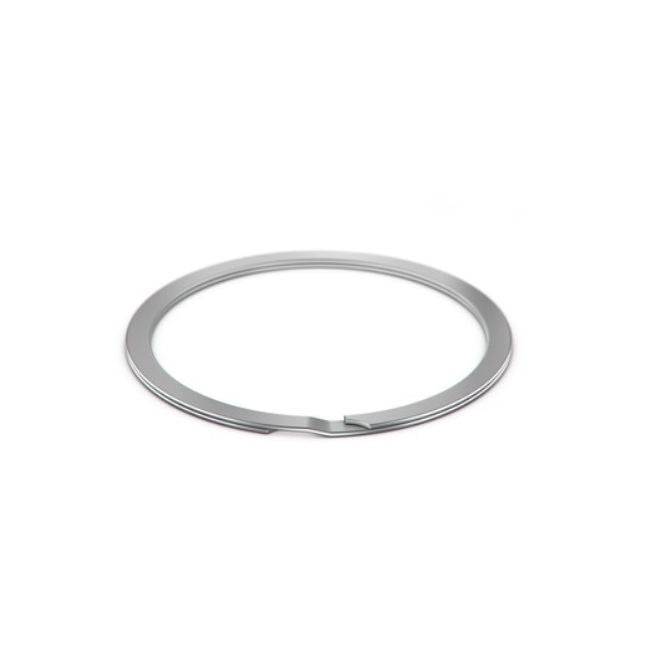

RR-100-S02DiagramRR-100-S02Image
