US-100 - Datasheet
MBA
Category Information

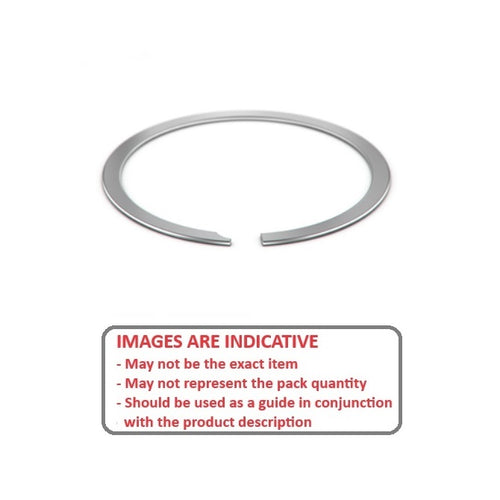

Retaining Rings - External - Spiral Rings - Light Duty - Carbon SteelCarbon Steel Light Duty Spiral Rings External Retaining Rings. Includes series CE / VS / US - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Light duty single turn rings used in low clearance applications.
- Also used as a positioning point for light loads.
- Radius notch on one end for removal.
- Narrow radial wall yields moderate thrust loads.
- Equivalent to Associated Spring: CE, Smalley: VS, Spirolox and Ramsey: US
Product Data

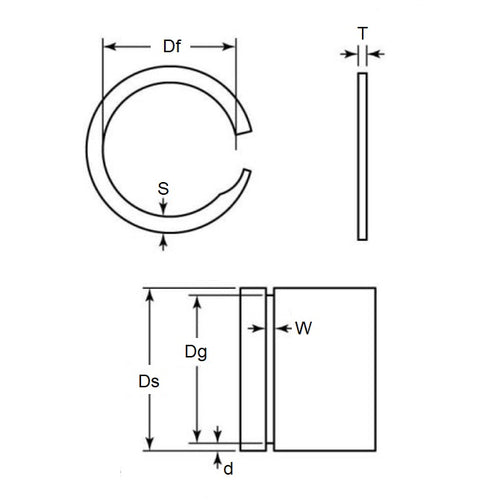

- Shaft Diameter (Ds)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
0.54
mm
+/- 0.04
(Equiv. 0.021 in.) - Groove Dia. (Dg)
24.34
mm
(Equiv. 0.958 in.) - Approx. Loose Circlip ID (A) 24.13 mm + 0.00 / - 0.33
- Radial Wall (S) 1.65 mm +/- 0.10
- Groove Width (W) 0.69 mm +/- 0.07
- Approx. Loose Clip OD 27.43 +/- - 0.03
- Groove Depth (d) 0.53
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 94540A360
- Smalley VS-100
- VS100
