CP-254K-254K-51-076-R-CG - Datasheet
MBA
Category Information

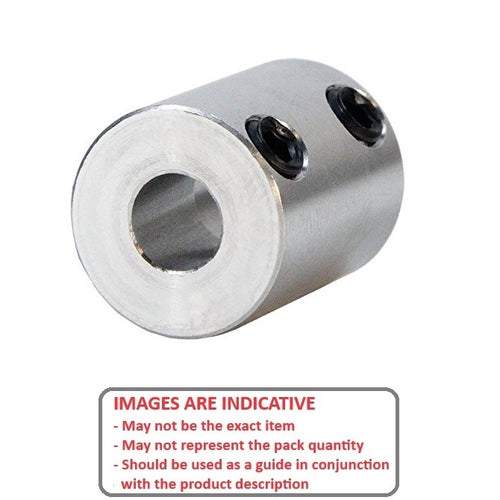

Couplings - Rigid - Set ScrewSet Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.
- An expanded range may be available on special order. Please enquire.
- Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
- Quality Class Commercial: Bore Tolerance +0.051 / -0.000.
Product Data
- Bore (b1)
:
25.400 (Keyed 6.35mm Sq)
mm
(Equiv. 1 in.) - Bore (b2) Keyed 25.4 mm
- OD (D)
50.800
mm
(Equiv. 2 in.) - Length (L) 76.200 mm
- Bore Depth (B) Through Bore mm
- Quality Class Commercial

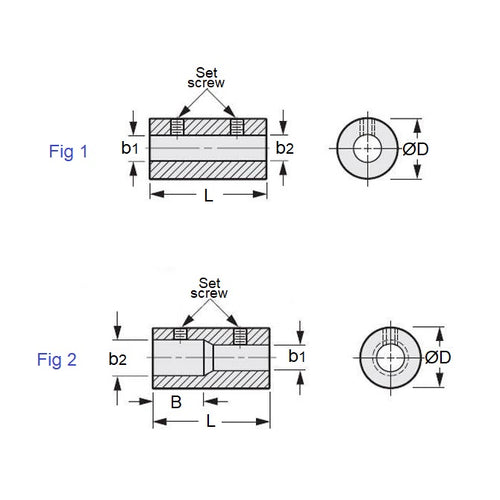

- Figure Fig. 1
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6412K45
- NoCor SC-1000
- SC1000
