A-15RS - Datasheet

MBA

Category Information

Suction Cups

Suction Cups. EPDM or Natural Rubber as listed against each item

  • EPDM is a higher grade rubber that rates excellent for ozone resistance and is used for molded parts used outdoors.
  • SBR is Styrene-butadiene Rubber is a general purpose rubber but not recommended for continual use outdoors or in oily environments.

Product Data

  • Diameter : 25.400 mm
    (Equiv. 1 in.)
  • Height 7.940 mm
    (Equiv. 0.313 in.)
  • Description 8-32 x 3/8" Stud
  • Colour Black
  • Material Blend of natural rubber and SBR rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 53535A22
    View full details

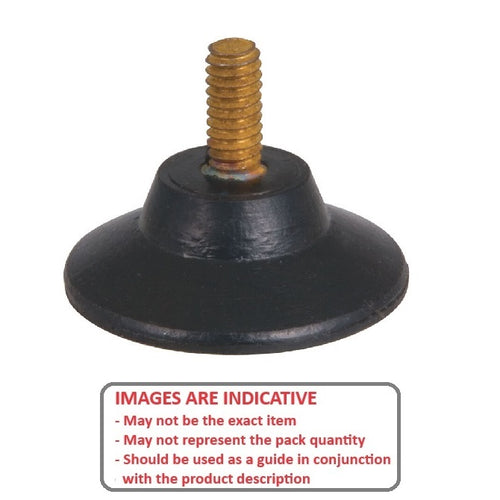

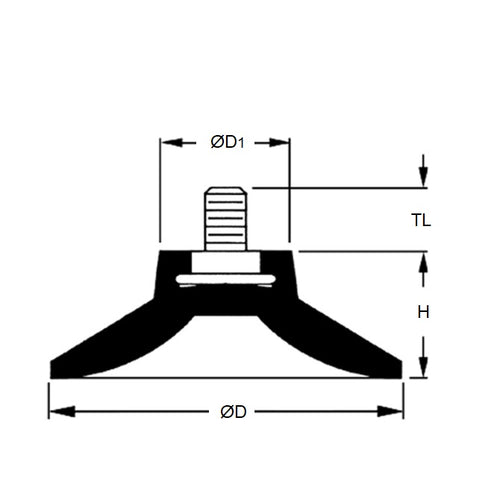

    A-15RSDiagramA-15RSImage
