CCF-1215RS - Datasheet
MBA
Category Information

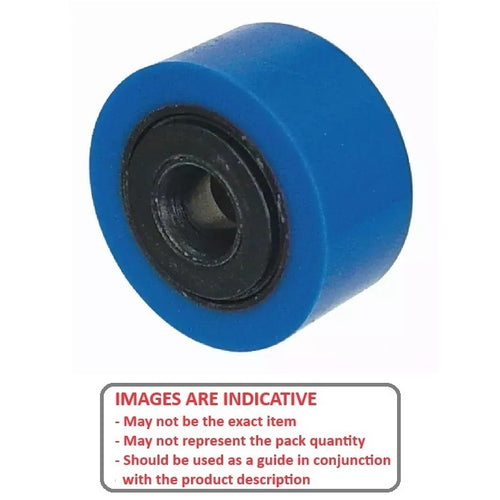

Roller Followers - Urethane CoatedUrethane Coated Roller Followers. Urethane tyred cam yoke rollers for noise reduction, reduced wear and non marking. 80 Shore A hardness.
- Polycoated shore 80A cast urethane cover
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

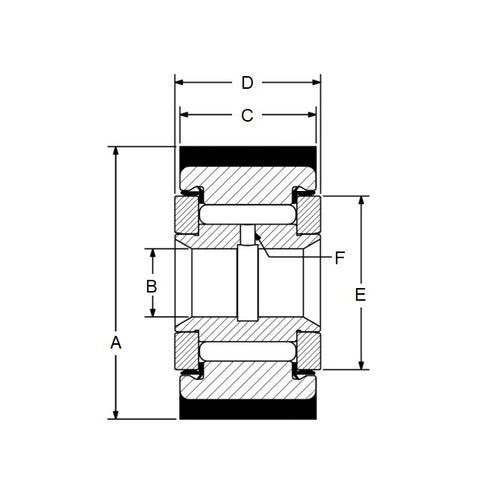

- Outside Diameter (A)
:
25.400
mm
+/- 0.13
(Equiv. 1 in.) - Bore (B)
6.350
mm
+ 0.005 / - 0.010
(Equiv. 0.25 in.) - Roller Width (C)
12.700
mm
+/- 0.13
(Equiv. 0.5 in.) - Overall Width (D) +0.13/-0.26 14.288 mm
- Approx Washer OD (E) Ref. 15.9 mm
- Oil Hole Diameter (F) 2.38 mm
- Material Polyurethane Coated
