Miniature Bearings Australia
0R-0254-0381-ALC-T30 - Datasheet
MBA
Category Information

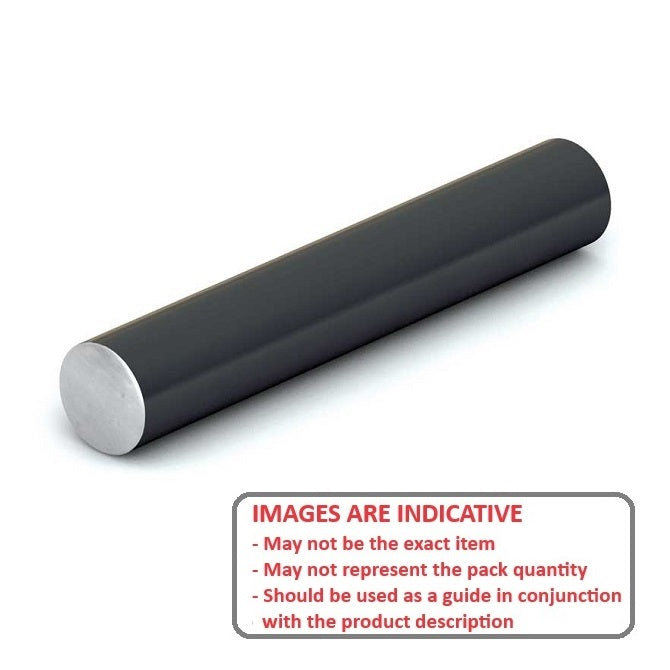

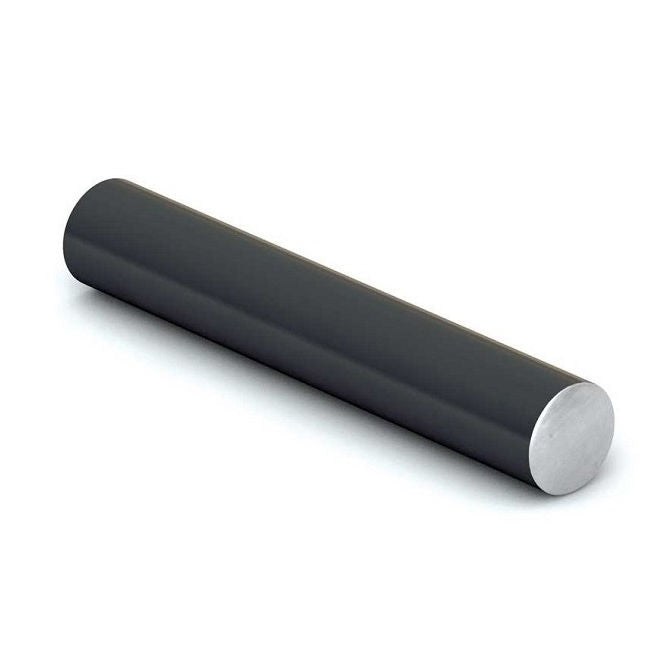

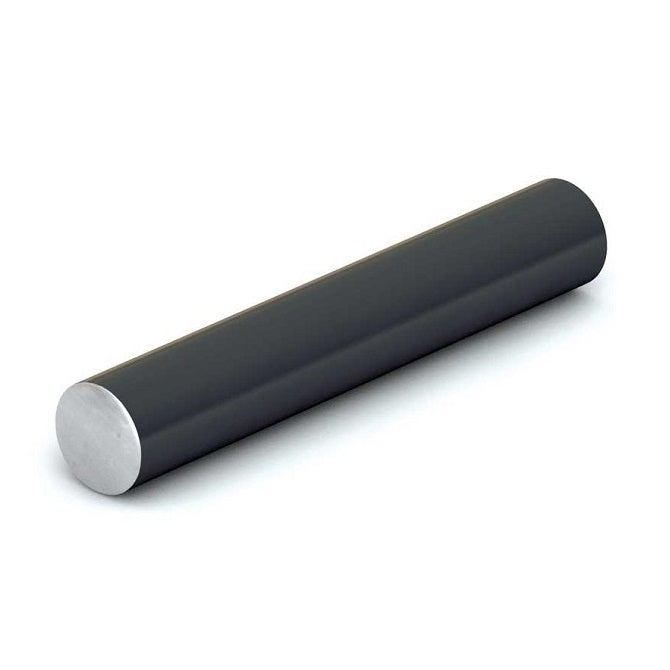

Shafting - Linear - Aluminium - Ceramic Coated - UntappedUntapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.
- Weld spatter, contaminants and paints will not stick.
- Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
- Shaft ends are not coated
Product Data

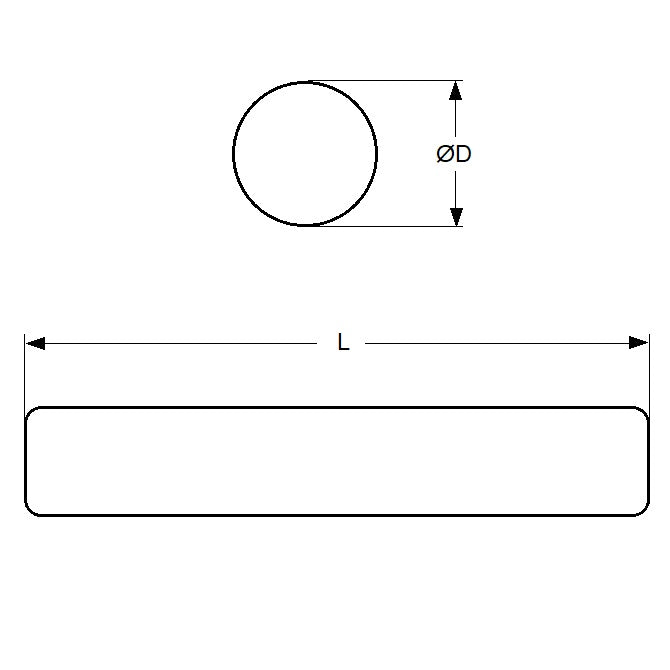

- Outside Diameter
:
25.400
mm
- 0.010 / - 0.030
(Equiv. 1 in.) - Length
381
mm
(Equiv. 15 in.) - Material Ceramic Coated Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 1031K34
- PBC1069
- PBC-1069
