Miniature Bearings Australia
AU-950RS - Datasheet
MBA
Category Information

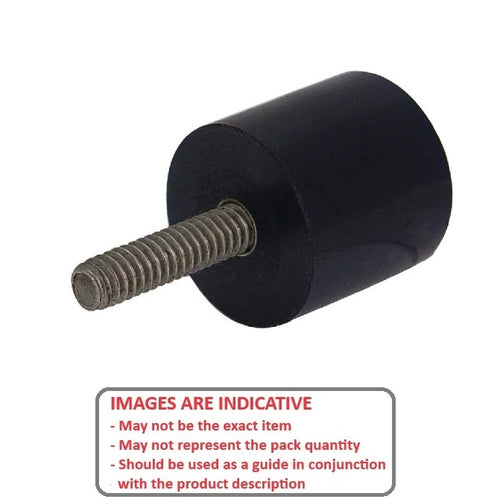

Bumpers - Cylindrical Male Thread - StandardStandard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers
- Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
- The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
- These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.
Product Data
- Diameter (A)
:
25.400
mm
 (Equiv. 1 in.)
- Height (B)
25.400
mm
 (Equiv. 1 in.)
- Thread 1/4-20 UNC (6.35mm)
- End Flat with radiused Edges
- Durometer 95A
- Colour Red
- Material Polyurethane
Product Compliance and Data
Additional Resources
