CCF440RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 25.400 mm
      (Equiv. 1 in.)
    • Overall Width (D) 17.463 mm
      (Equiv. 0.688 in.)
    • Bore (B) 7.938 mm
      (Equiv. 0.313 in.)
    • Width (C) 15.875 mm
    • E 18.256 mm
    • Dynamic Load Rating 907.185 kg
    • Static Load Rating 2267.962 kg
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 7796K82
      • CCF440
      • CCF-440
      View full details

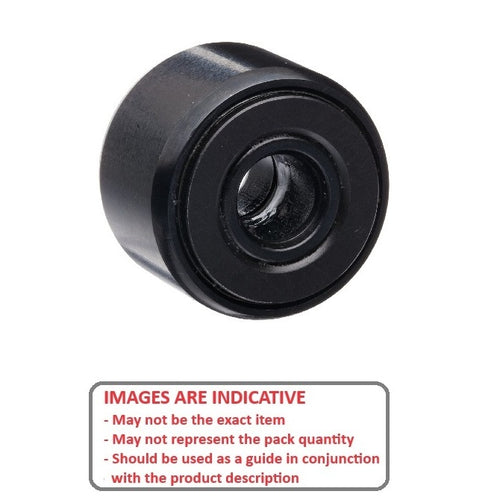

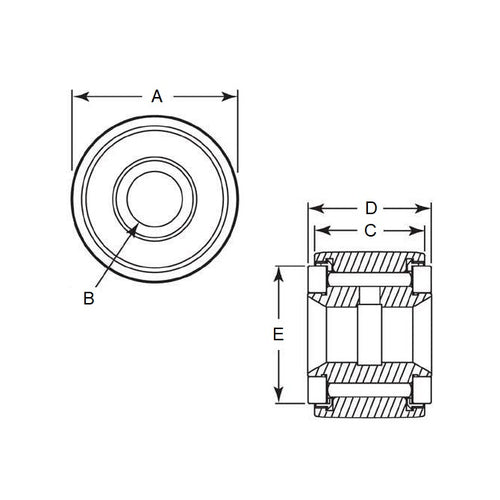

      CCF440RSDiagramCCF440RSImage
