NCF115RS - Datasheet

MBA

Category Information

Roller Followers - Self Lubricating

Self Lubricating Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 25.400
    • Overall Width (D) 17.463
    • Bore (B) 7.938
    • Width (C) 15.875
    • Load Factor 0.250
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • NCF115
      • NCF-115
      View full details

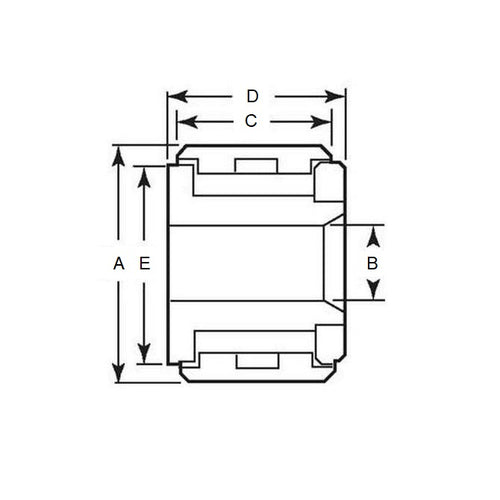

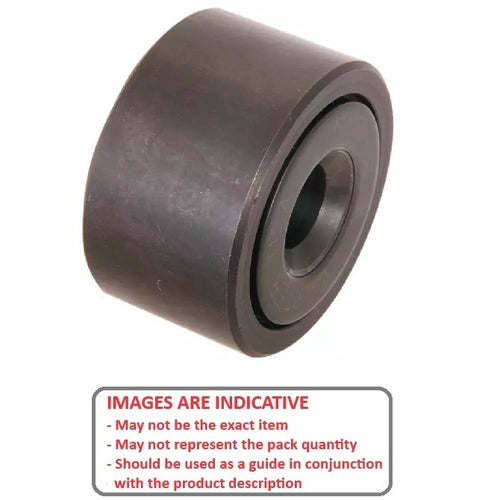

      NCF115RSDiagramNCF115RSImage
