BFM-1000-B - Datasheet
MBA
Category Information

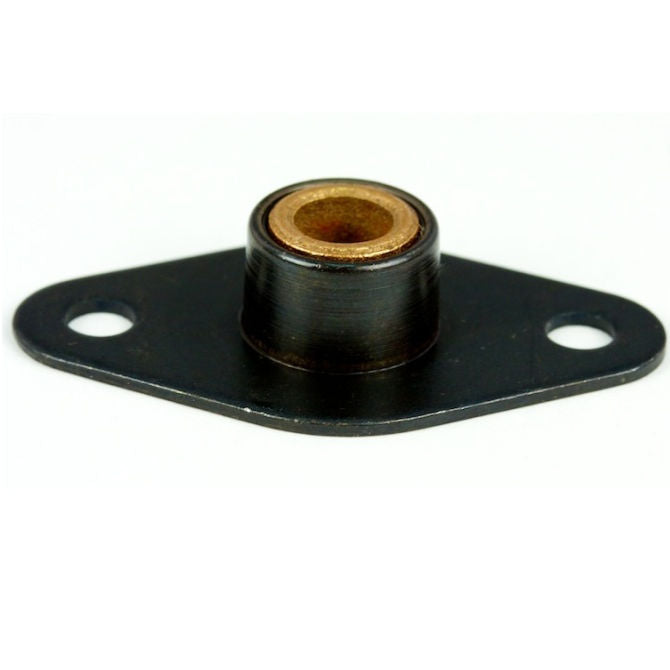

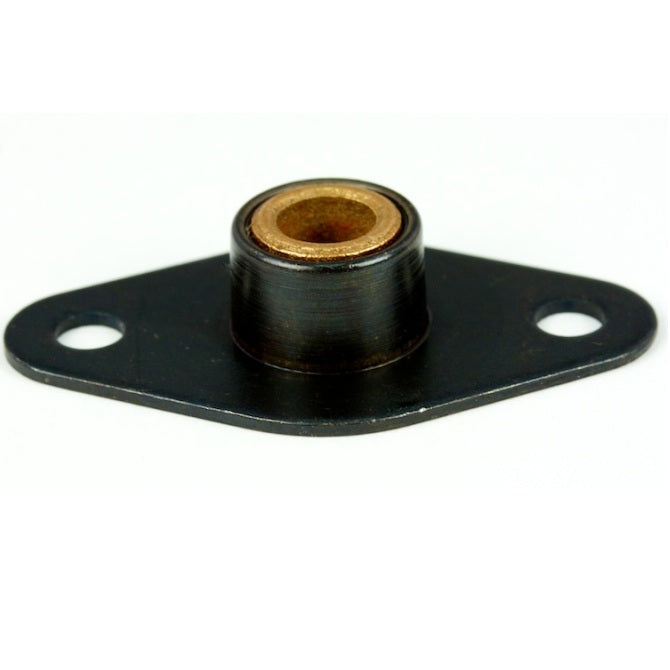

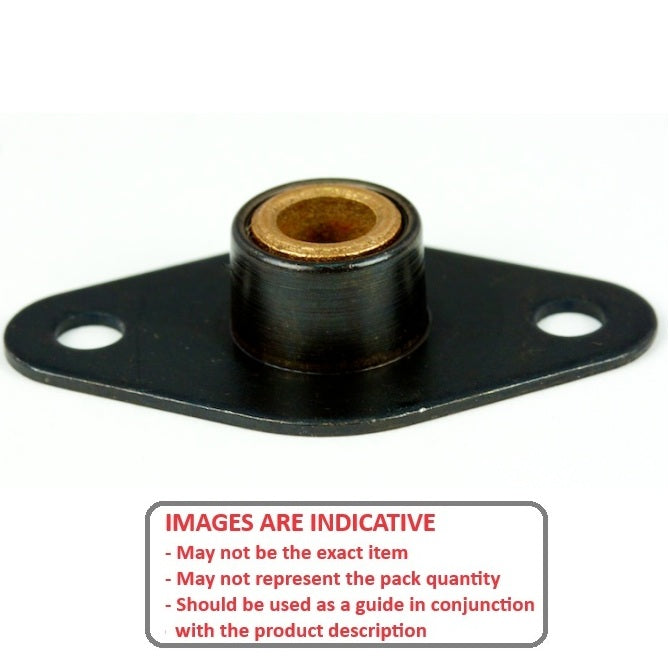

Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered BronzeSintered Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted sintered bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
25.400
mm
(Equiv. 1 in.) - Width (W)
82.55
mm
(Equiv. 3.25 in.) - Overall Length (A)
40.64
mm
(Equiv. 1.6 in.) - Overall Height (E) 50.80 mm
- Min to Max Shaft Dia. 25.425 to 25.476 mm
- Max. Radial Dynamic Load 12900 N
- Bolt Hole Centres (L) 63.50 mm
- Max Speed 4580
- Material Sintered Bronze SAE 840
Product Compliance and Data
Additional Resources
Cross References
- 5912K32
