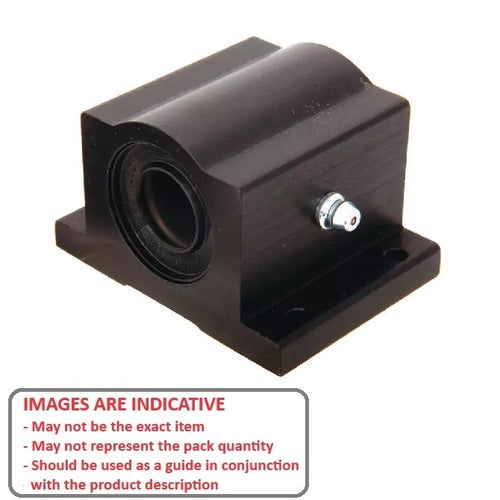

LCHP-0254-056-CC - Datasheet
MBA
Category Information
Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.

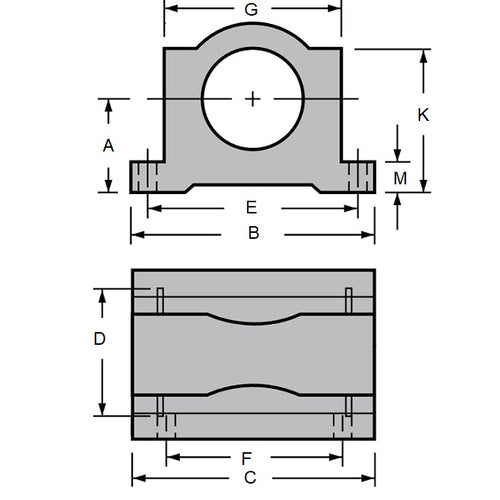

Product Data
- Nominal Diameter
:
25.40
mm
(Equiv. 1 in.) - Widths (B x C)
82.55 x 71.44
mm
(Equiv. 3.25 in.) - Length (D)
55.56
mm
(Equiv. 2.187 in.) - Bolt Distances (E x F) 73.03 x 44.45 mm
- Bolt Hole Size 5.56 mm
- Height (K) 50.80 mm
- Centre Height (A) 30.15 mm
- G 60.33 mm
- M 9.53 mm
- Max Static Load Capacity 5107.00 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K16
- LMB320
- LMB-320
