ED2RRS - Datasheet

ACE

Category Information

Shock Absorbers - Small Hydraulic Adjustable

Small Hydraulic Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (C) 1-12 UNF (25.4mm)
    • Type Standard
    • Length (A/F) 142.75 / 103.89 mm
    • Shaft Diameter (D) 6 mm
    • Max. Shock Force 454 KG
    • Max. Propelling Force 136 KG
    • Nom. Coil Spring Force Exten 1 KG
    • Nom. Coil Spring Force Compres 3 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED2R
      • ED-2R
      View full details

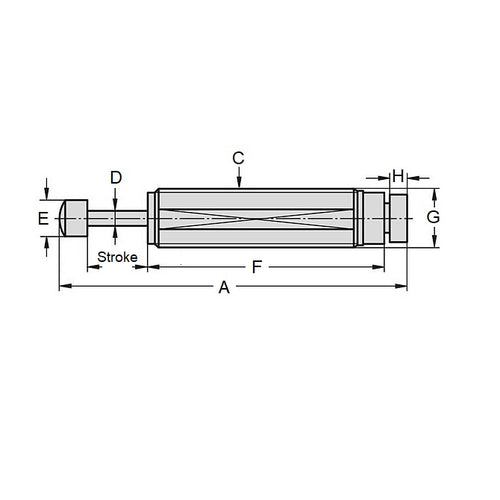

      ED2RRSDiagramED2RRSImage
