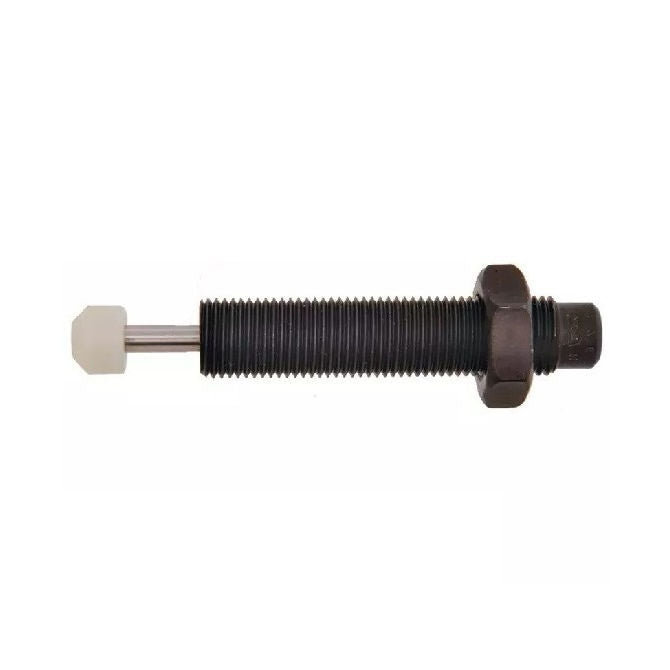

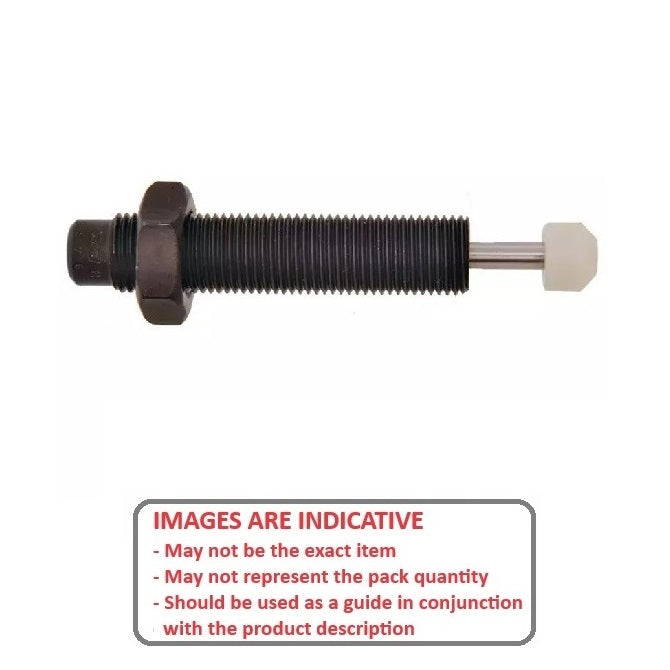

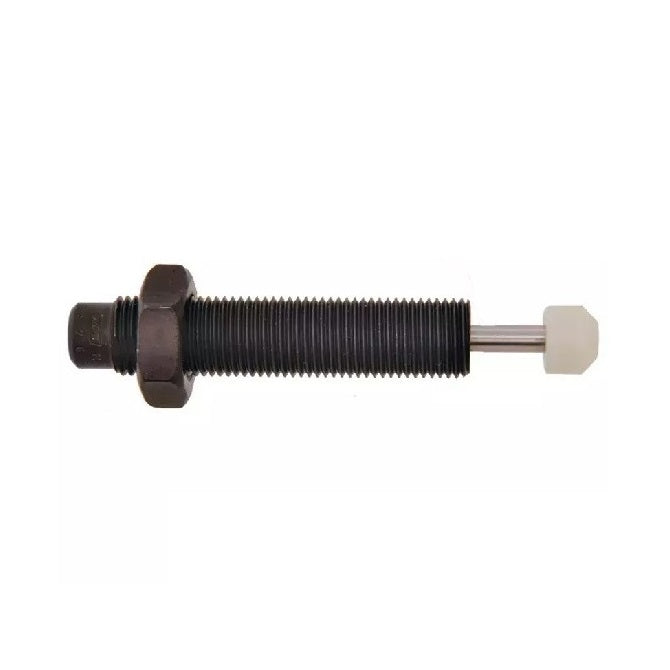

ACE0600RS - Datasheet

ACE

Category Information

Shock Absorbers - Adjustable - Standard

Standard Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (T) 1-12 UNF (25.4mm)
    • Length (A/F) 142.75 / 89.92 mm
      (Equiv. 5.62 in.)
    • Shaft Diameter (D) 6.35 mm
    • Effective Weight 9 - 1361 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE0600
      • ACE-0600
      View full details

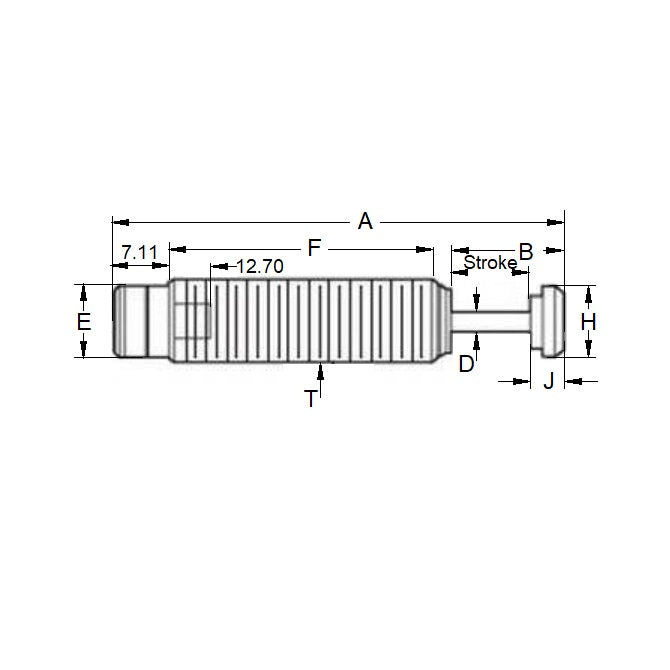

      ACE0600RSDiagramACE0600RSImage
