ACEAS381RS - Datasheet

ACE

Category Information

Shock Absorbers - Adjustable - Miniature

Miniature Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (T) 1-12 UNF (25.4mm)
    • Length (A1/F) 127.00 / 85.60 mm
      (Equiv. 5 in.)
    • Shaft Diameter (D) 7.87 mm
    • Effective Weight 5 - 567 KG
    • Wrench Flat (EE) 22.35 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-AS381
      • ACEAS381
      View full details

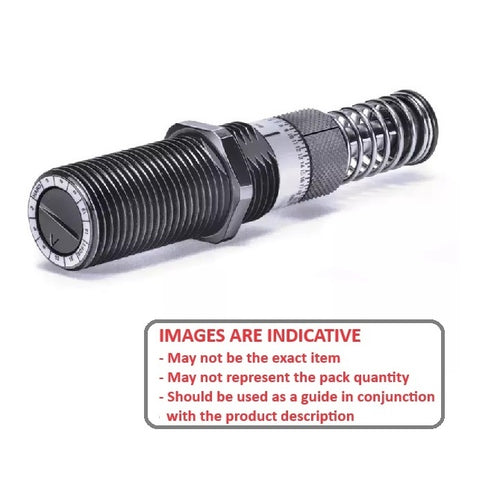

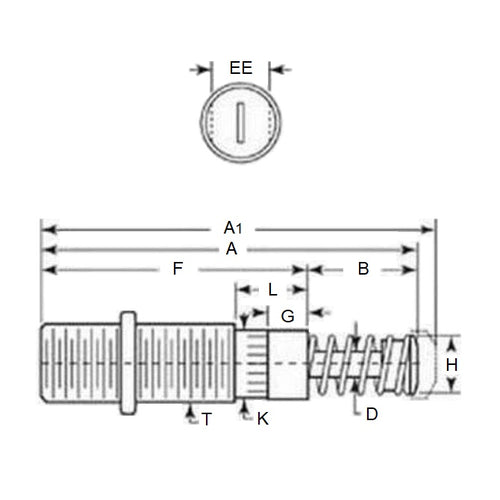

      ACEAS381RSDiagramACEAS381RSImage
