Miniature Bearings Australia
LCSQ-0254-152-2 - Datasheet
MBA
Category Information

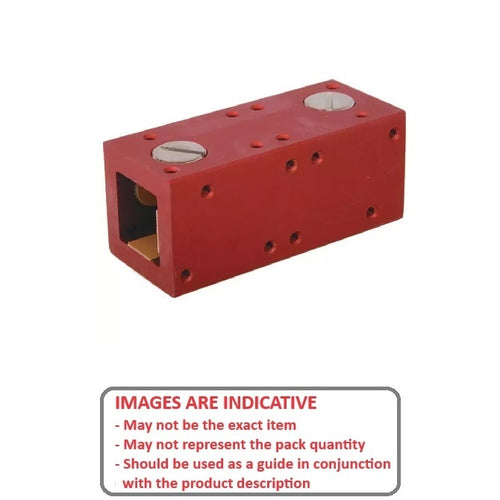

Linear - Square HousingsSquare Housings Linear. Used to maintain radial integrity and eliminate the need for parallel shafting.
- Bearings are made from 6061-T6 Aluminum with Anodized finished.
- Equipped with bearing plugs that run on a single shaft.
- Threaded adjustable plugs are made from 316 Stainless with self-lubricating FrelonJ wear pads.

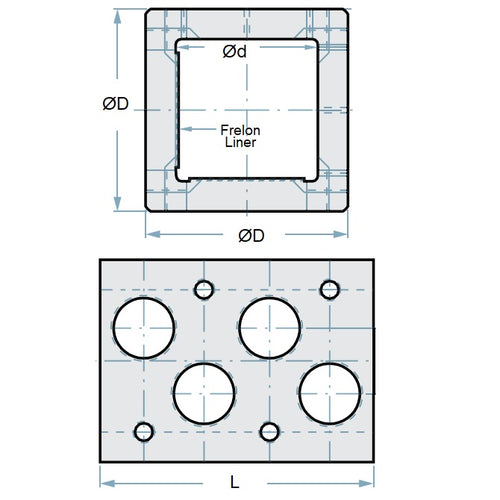

Product Data
- Suitable Shaft Diameter : 25.40 mm
- Outside Diameter 58.74 mm
- No. Of Adjustable Sides. Two Sided
- Length 152.40 mm
- Load Capacity 834.61 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® PBC-435
- PBC435
